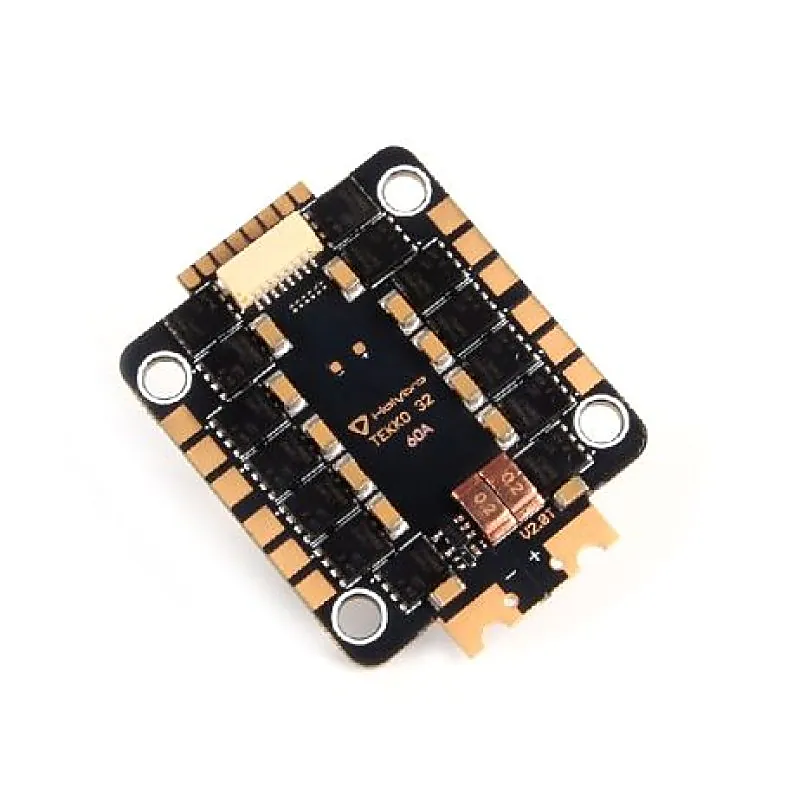

Holybro Tekko32 F4 4in1 60A ESC

The Tekko32 F4 4in1 60A ESC is a high-performance electronic speed controller. This compact 4-in-1 ESC is designed with a 3030 mounting pattern and supports 3-6S LiPo batteries. It has all new High-quality MOSFETswith low internal resistance and low heat generation,ensuring efficient power delivery and a smooth flight experience whileallowing the ESC toboast a continuous current of 60A. It has a separate drive and control circuit to broaden the current capability of the drive circuit while reducing electrical interference in the control circuit. With its cutting-edge BLHeli_32 firmware and 96K PWM frequency, enjoy lightning-fast response times and exceptional motor control. Features: All new High-quality MOSFETswith low internal resistance and low heat generation Fast F4 MCU @150MHz (compared to F3 @108MHz & F0 @48MHz) A separate drive and control circuit, reducing the electrical interference Continuous Current Rating of 60 Amps Supports DShot 150/300/600/1200/2400 Supports MultiShot/OneShot/Proshot/PWM etc. ESC telemetry Supported Onboard analog current sensor BLHeli_32 firmware 1000uf 35v capacitor included (highly recommended for 6s setup) Amperage meter scale ratio: 120 Package Includes: 1x Tekko32 F4 4in1 60A ESC 4x M3 Anti-Vibration Silicone Grommet Insert 1x Electrolytic capacitor: 1000uF 35v 1x 8pin to 8pin 1mm pitch 65mm cable 1x 8pin to 8pin 1mm pitch 25mm cable
