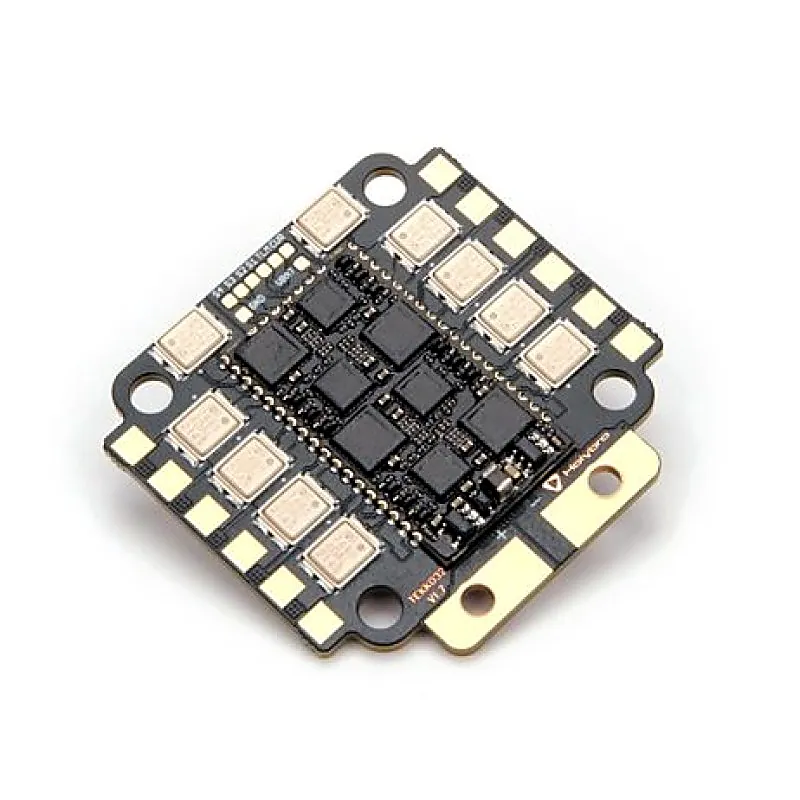

Holybro Tekko32 F4 Metal 4in1 65A ESC (65A)
Holybro Tekko32 F4 Metal 4in1 65A ESC (65A)
F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output up to 96K / 4~6S / BLHELI32 The all new Tekko32 Metal is the first 4in1 ESC in the market to adapt the fast F4 MCU. Powerful & reliable metal-cased MOSFET 4in1 ESC with smooth control and quick response. Features: New & faster F4 MCU @ 150Mhz (compare
+ 18% GST (added at checkout)
In stock — 2 units ready
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM output up to 96K (default 48K)
- Metal-cased MOSFET for excellent heat dissipation
- Massive on-board capacitance for noise filtering at 2068uf
- 3 oz copper PCB design to allow bigger current and better heat dissipation
- Separate drive & control circuit, this broadens the current capability of the drive
- circuit while reducing the electrical interference to the control circuit.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output up to 96K / 4~6S / BLHELI32 The all new Tekko32 Metal is the first 4in1 ESC in the market to adapt the fast F4 MCU. Powerful & reliable metal-cased MOSFET 4in1 ESC with smooth control and quick response. Features: New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz) PWM output up to 96K (default 48K) Metal-cased MOSFET for excellent heat dissipation Massive on-board capacitance for noise filtering at 2068uf 3 oz copper PCB design to allow bigger current and better heat dissipation Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit. Package Includes: 1 x Tekko32 F4 Metal 4in1 65A ESC 4 x M3 Anti-Vibration Silicone Grommet Insert 1 x Electrolytic capacitor: 1000uF 35v 1 x 8pin to 8pin 1mm pitch 65mm cable 1 x 8pin to 8pin 1mm pitch 25mm cable Attachments : Download
