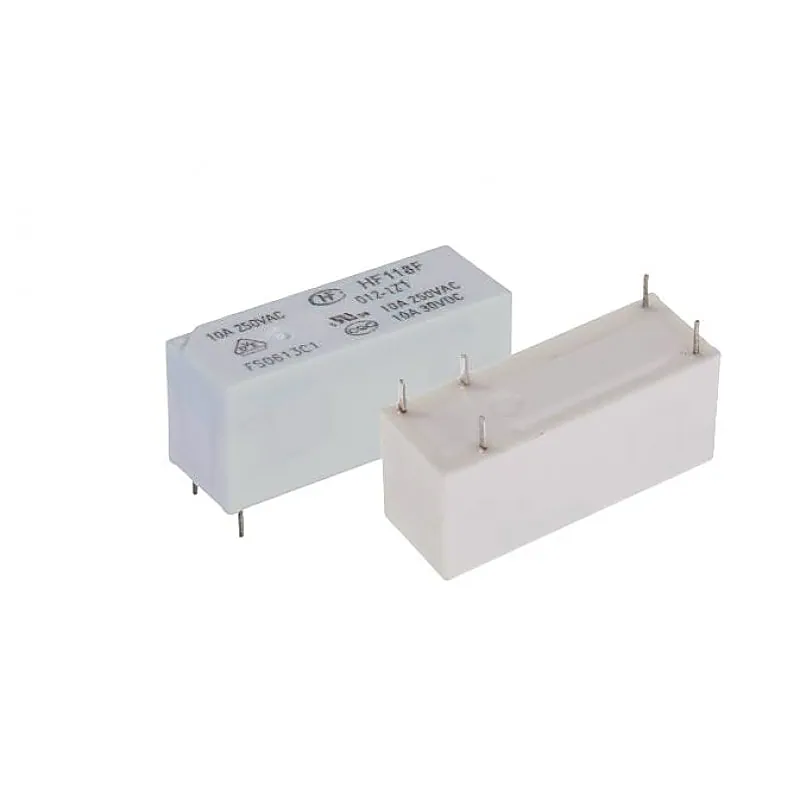

Hongfa 12V 10A DC HF118F/012-1Z1 Series 5 Pins SPDT High Power Relay

Hongfa 12V 10A DC HF118F/012-1Z1 Series 5 Pins SPDT High Power Relay offers low height, 8A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features: 8A switching capability 5kV dielectric strength (between coil and contacts) Low height: 12.5 mm Creepage distance >8mm Meeting VDE 0700, 0631 reinforce insulation Product in accordance to IEC 60335-1 available 1 pole configurations available UL insulation system: Class F Plastic sealed and flux proofed types available Specifications: Manufacturer: HONGFA RELAY Type of relay: electromagnetic Contact Arrangement: 1 Form C Contacts configuration: SPDT Rated coil voltage: 12V DC AC contacts rating @R: 10A / 250V AC (at resistive load) DC contacts rating @R: 10A / 30V DC (at resistive load) Contact current max: 10A Switched voltage: max. 125V DC, max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 620Ω Coil voltage min: 8.4V DC Coil voltage max: 18V DC Operate time: 10ms Body dimensions: 28.5x12.5x10.1mm Release time: 5ms Coil power consumption: 220mW Operating temperature: -40...85°C Contact resistance: 100mΩ Contact material: AgNi+Au Plated Terminal pitch: 3.2mm Size: 28.5x10.1x12.5mm Weight: 8gm Package Includes: 1 x Hongfa 12V 10A DC HF118F/012-1Z1 Series 5 Pins SPDT High Power Relay
