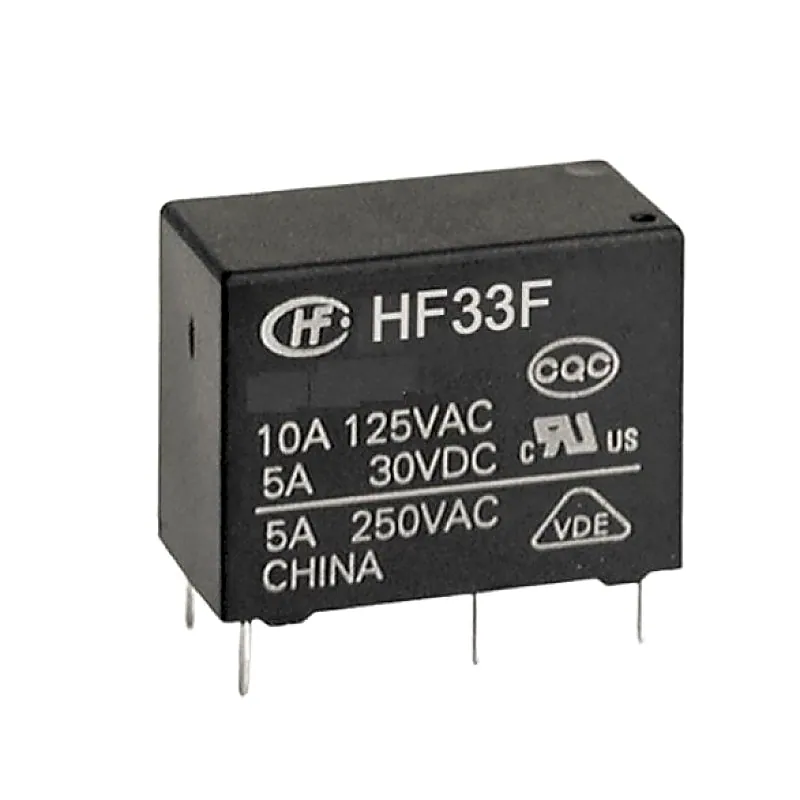

Hongfa 12V 10A DC HF33F/012-HL3 5-Pin SPDT Miniature Power Relay
Hongfa 12V 10A DC HF33F/012-HL3 5-Pin SPDT Miniature Power Relay
Hongfa 12V 10A DC HF33F/012-HL3 5-Pin SPDT Miniature Power Relay Features: Provide 5A 250VAC to meet 300000 switching capability specifications Creepage distance: 8mm (coil & contacts) Clearance distance: NO type 4.5mm, NC type 4mm Creepage distance >8mm Subminiature, standard PCB layout Plastic sea
+ 18% GST (added at checkout)
In stock — 40 units ready
- Provide 5A 250VAC to meet 300000 switching capability specifications
- Creepage distance: 8mm (coil & contacts)
- Clearance distance: NO type 4.5mm, NC type 4mm
- Creepage distance >8mm
- Subminiature, standard PCB layout
- Plastic sealed and flux proofed types available
- UL insulation system: Class F available
- Product in accordance to IEC 60335-1 available.
- Type : HF33F/012-HL3
- Switching Current (A,Res.load) : 10A
- Contact arrangement : 1 Form A
- Coil version : single contact
- Terminal Type : Quick connect terminals
- Mounting : PCB-THT
- Construction : Flux proofed
- Terminals : N/A
- Contact material : AgNi
- Sort : Single side stable
- Coil voltage : 12
- Coil power: Approx 0.2W
- Insulation standard : Class F
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Volume（mm³) : 20.5×10.2×15.7 (mm)
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 12V 10A DC HF33F/012-HL3 5-Pin SPDT Miniature Power Relay Features: Provide 5A 250VAC to meet 300000 switching capability specifications Creepage distance: 8mm (coil & contacts) Clearance distance: NO type 4.5mm, NC type 4mm Creepage distance >8mm Subminiature, standard PCB layout Plastic sealed and flux proofed types available UL insulation system: Class F available Product in accordance to IEC 60335-1 available. Specifications: Type : HF33F/012-HL3 Switching Current (A,Res.load) : 10A Contact arrangement : 1 Form A Coil version : single contact Terminal Type : Quick connect terminals Mounting : PCB-THT Construction : Flux proofed Terminals : N/A Contact material : AgNi Sort : Single side stable Coil voltage : 12 Coil power: Approx 0.2W Insulation standard : Class F Coil voltage form : DC Rated voltage(V) : 250VAC Volume（mm³) : 20.5×10.2×15.7 (mm) Package Includes: 1 x Hongfa 12V 10A DC HF33F/012-HL3 5-Pin SPDT Miniature Power Relay
