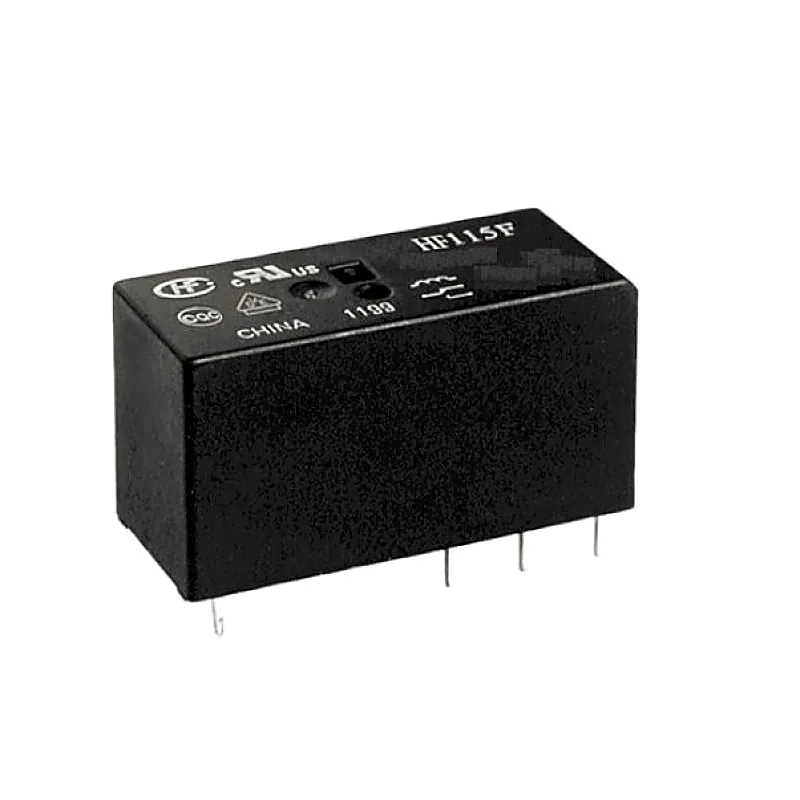

Hongfa 12V 12A DC HF115F/012-1Z2BF 5-Pin SPDT Power Relay
Hongfa 12V 12A DC HF115F/012-1Z2BF 5-Pin SPDT Power Relay
Hongfa 12V 12A DC HF115F/012-1Z2BF 5-Pin SPDT Power Relay Features: Low height: 15.7 mm 16A switching capability 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm Meeting VDE 0700, 0631 reinforce insulation Sockets available Product in accordance to IEC 60335-1 available Pl
+ 18% GST (added at checkout)
In stock — 149 units ready
- Low height: 15.7 mm
- 16A switching capability
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm
- Meeting VDE 0700, 0631 reinforce insulation
- Sockets available
- Product in accordance to IEC 60335-1 available
- Plastic sealed and flux proofed types available
- Type : HF115F/012-1Z2BF
- Switching Current (A,Res.load) : 12A
- Contact arrangement : 1 Form C
- Coil version : single contact
- Terminal Type : PCB
- Mounting : PCB-THT
- Construction : Flux proofed
- Terminals : 5.0mm 1 pole 12A
- Contact material : AgSnO2
- Sort : Standard
- Coil voltage : 24
- Coil power: Approx 0.4
- Insulation standard : Class F
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Volume（mm³) : 29.0×12.7×15.7 (mm)
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 12V 12A DC HF115F/012-1Z2BF 5-Pin SPDT Power Relay Features: Low height: 15.7 mm 16A switching capability 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm Meeting VDE 0700, 0631 reinforce insulation Sockets available Product in accordance to IEC 60335-1 available Plastic sealed and flux proofed types available Specifications: Type : HF115F/012-1Z2BF Switching Current (A,Res.load) : 12A Contact arrangement : 1 Form C Coil version : single contact Terminal Type : PCB Mounting : PCB-THT Construction : Flux proofed Terminals : 5.0mm 1 pole 12A Contact material : AgSnO2 Sort : Standard Coil voltage : 24 Coil power: Approx 0.4 Insulation standard : Class F Coil voltage form : DC Rated voltage(V) : 250VAC Volume（mm³) : 29.0×12.7×15.7 (mm) Package Includes: 1 x Hongfa 12V 12A DC HF115F/012-1Z2BF 5-Pin SPDT Power Relay
