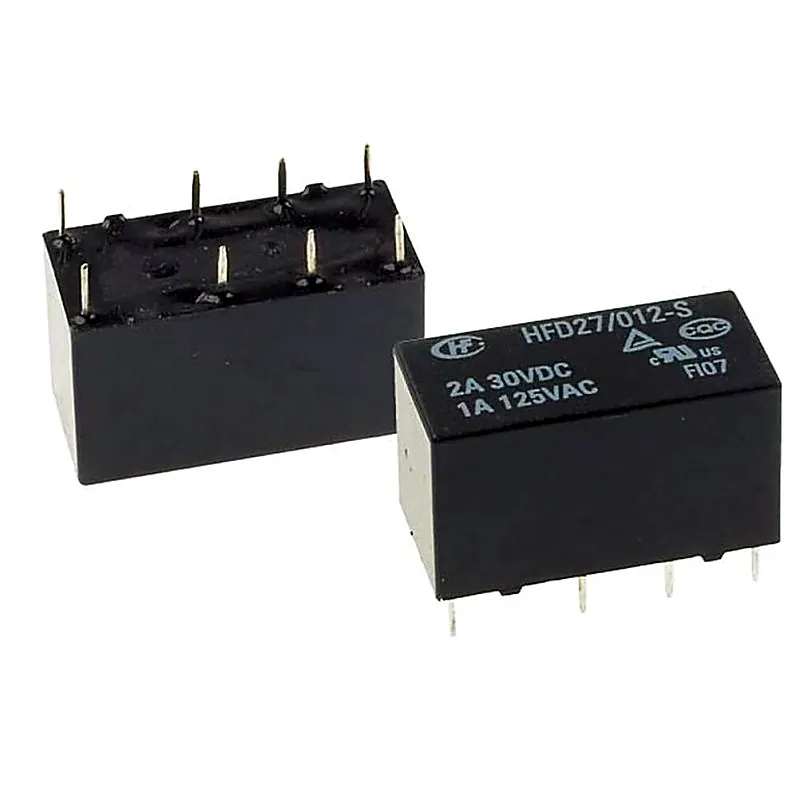

Hongfa 12V 2A DC HFD27/012-S 8 Pin DPDT PCB Mount Telecom Relay

A relay is an electrically operated switch. It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as making contacts, break contacts or combinations thereof. Relays are used where it is necessary to control a circuit by an independent low-power signal, or where several circuits must be controlled by one signal. Relays were first used in long-distance telegraph circuits as signal repeaters: they refresh the signal coming in from one circuit by transmitting it on another circuit. Relays were used extensively in telephone exchanges and early computers to perform logical operations. Features and Specifications: Brand: Hongfa Coil Voltage (DC): 12 V Contact Arrangement: 2 Form C Contact Current Rating: 2 A Termination: PCB Mounting: DIP Contact capacity: AgNi+Au plated Construction: Plastic sealed Release time: < 4ms Contact plating: Au plated Operate time: < 7ms Dielectric strength (between coil & contacts): 2000VAC 1min Ambient temperature: -40~85C Insulation resistance: 1000MOhm Max Switching Current (AC): 2A Max Switching Voltage (VDC): 120VDC Max Switching Voltage (VAC): 240VAC Size: 20.0x10.0x11.5mm Weight: Approx. 5g Mechanical endurance: 100000000 Electrical endurance: 100000 Coil Power: Standard: 280mW to 580mW Package Includes: 1 x Hongfa 12V 2A DC HFD27/012-S 8 Pin DPDT PCB Mount Telecom Relay
