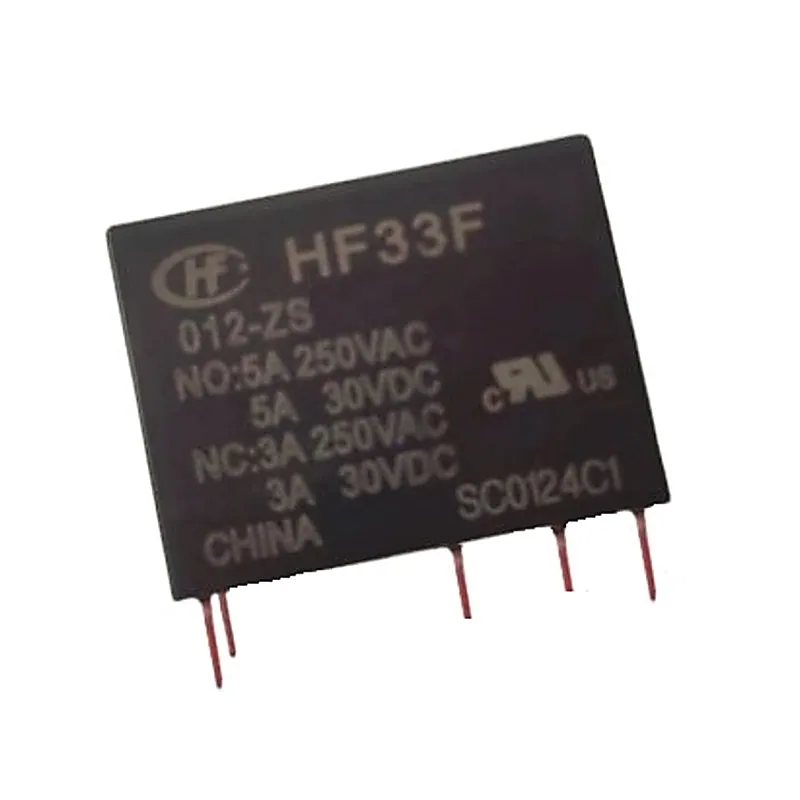

Hongfa 12V 5A DC HF33F/012-ZS3 5-Pin SPDT Miniature Power Relay

Hongfa 12V 5A DC HF33F/012-ZS3 5-Pin SPDT Miniature Power Relay

Hongfa 12V 5A DC HF33F/012-ZS3 5-Pin SPDT Miniature Power Relay Features: Provide 5A 250VAC to meet 300000 switching capability specifications Creepage distance: 8mm (coil & contacts) Clearance distance: NO type 4.5mm, NC type 4mm 1 Form A、1 From B and 1 Form C configurations Subminiature, standard

+ 18% GST (added at checkout)

In stock — 529 units ready

• Provide 5A 250VAC to meet 300000 switching capability specifications
• Creepage distance: 8mm (coil & contacts)
• Clearance distance: NO type 4.5mm, NC type 4mm
• 1 Form A、1 From B and 1 Form C configurations
• Subminiature, standard PCB layout
• Plastic sealed and flux proofed types available
• UL insulation system: Class F available
• Product in accordance to IEC 60335-1 available.
• Manufacturer : HONGFA
• Type : Electromechanical
• Coil voltage : 12VDC
• Coil Resistance : 320Ω
• Coil Current : -
• Coil Consumed Power : 450mW
• Contact voltage, VDC : 30V
• Contact current DC, A : 5.0(3.0)A
• Contact voltage, VAC : 250V
• Contact current AC, A : 5.0(3.0)A
• Contact configuration : SPDT
• Contact arrangement : 1 Form C
• Mounting type : TH
• Volume（mm³) : 20.5×10.2×15.7 (mm)
