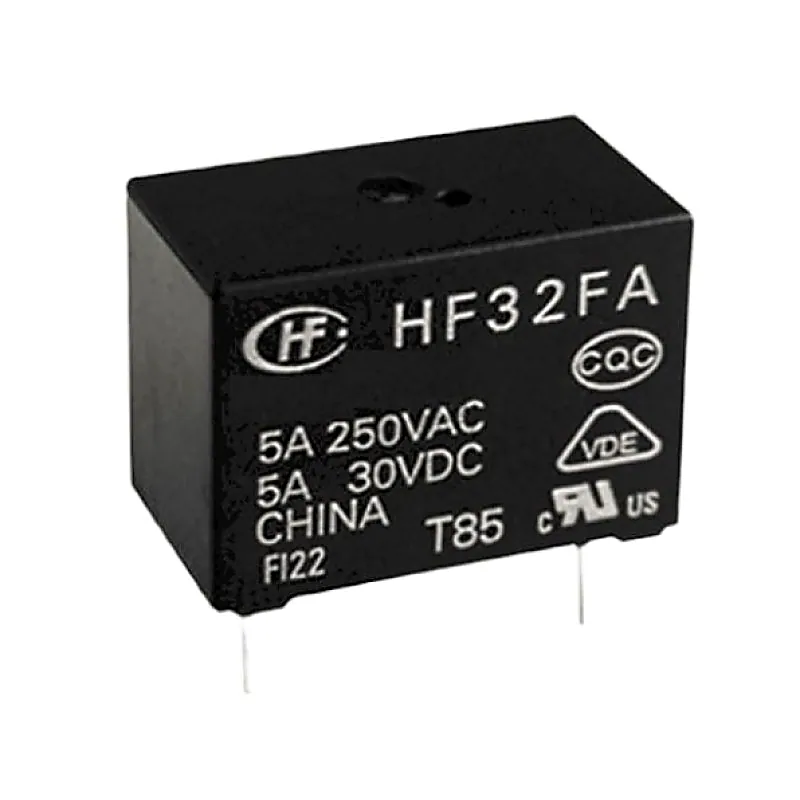

Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay
Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay
Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features: 5A switching capability Cree
+ 18% GST (added at checkout)
In stock — 612 units ready
- 5A switching capability
- Creepage/clearance distance>8mm
- 5kV dielectric strength (between coil and contacts)
- 1 Form A meets VDE 0700, 0631 reinforce insulation
- Product in accordance to IEC 60335-1 available
- Environment friendly product(RoHS compliant)
- Manufacturer : HONGFA RELAY
- Type of relay : Electromagnetic
- Contacts configuration : SPST-NO
- Rated coil voltage : 18V DC
- AC contacts rating @R : 5A / 250V AC
- Contact current max : 5A
- Switched voltage : max. 250V AC
- Relay variant : Subminiature
- Mounting : PCB
- Coil resistance : 620Ω
- Coil voltage min : 9V DC
- Coil voltage max : 18V DC
- Operate time : 8 m/s
- Body dimensions : 17.6x10.1x12.3mm
- Release time : 4ms
- Coil power consumption : 230mW
- Operating temperature : -40 to +85°C
- Contact resistance : 70mΩ
- Contact material : AgSnO2
- Weight : 4.5 gm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features: 5A switching capability Creepage/clearance distance>8mm 5kV dielectric strength (between coil and contacts) 1 Form A meets VDE 0700, 0631 reinforce insulation Product in accordance to IEC 60335-1 available Environment friendly product(RoHS compliant) Specifications: Manufacturer : HONGFA RELAY Type of relay : Electromagnetic Contacts configuration : SPST-NO Rated coil voltage : 18V DC AC contacts rating @R : 5A / 250V AC (at resistive load) Contact current max : 5A Switched voltage : max. 250V AC Relay variant : Subminiature Mounting : PCB Coil resistance : 620Ω Coil voltage min : 9V DC Coil voltage max : 18V DC Operate time : 8 m/s Body dimensions : 17.6x10.1x12.3mm Release time : 4ms Coil power consumption : 230mW Operating temperature : -40 to +85°C Contact resistance : 70mΩ Contact material : AgSnO2 Weight : 4.5 gm Package Includes : 1 x Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay
