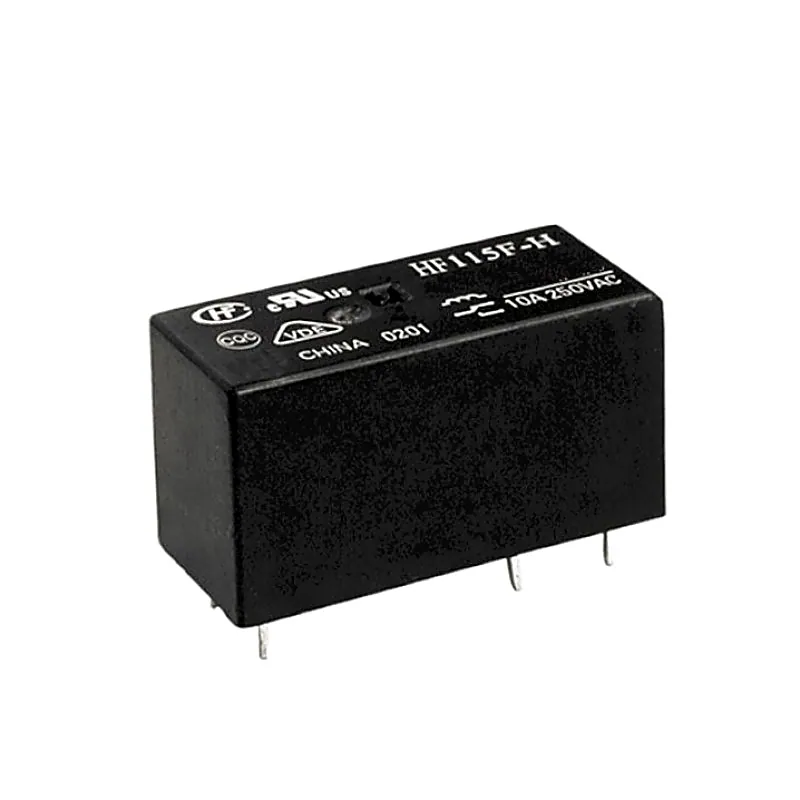

Hongfa 24V 10A DC HF115F-H/024-1ZS3B 8-Pin SPDT Power Relay
Hongfa 24V 10A DC HF115F-H/024-1ZS3B 8-Pin SPDT Power Relay
Hongfa 24V 10A DC HF115F-H/024-1ZS3B 8-Pin SPDT Power Relay Features: High sensitive: 0.25W Low height: 15.7 mm 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm Meeting VDE 0700, 0631 reinforce insulation Sockets available Product in accordance to IEC 60335-1 available Pla
+ 18% GST (added at checkout)
In stock — 28 units ready
- High sensitive: 0.25W
- Low height: 15.7 mm
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm
- Meeting VDE 0700, 0631 reinforce insulation
- Sockets available
- Product in accordance to IEC 60335-1 available
- Plastic sealed and flux proofed types available
- Type : HF115F-H/024-1ZS3B
- Switching Current (A,Res.load) : 10A
- Contact arrangement : 1 Form C
- Coil version : single contact
- Terminal Type : PCB
- Mounting : PCB-THT
- Construction : Plastic sealed
- Terminals : 5.0mm 1 pole
- Contact material : AgNi
- Sort : Standard
- Coil voltage : 24
- Coil power: Approx 0.25W
- Insulation standard : Class F
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Volume（mm³) : 29.0×12.7×15.7 (mm)
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 24V 10A DC HF115F-H/024-1ZS3B 8-Pin SPDT Power Relay Features: High sensitive: 0.25W Low height: 15.7 mm 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm Meeting VDE 0700, 0631 reinforce insulation Sockets available Product in accordance to IEC 60335-1 available Plastic sealed and flux proofed types available Specifications: Type : HF115F-H/024-1ZS3B Switching Current (A,Res.load) : 10A Contact arrangement : 1 Form C Coil version : single contact Terminal Type : PCB Mounting : PCB-THT Construction : Plastic sealed Terminals : 5.0mm 1 pole Contact material : AgNi Sort : Standard Coil voltage : 24 Coil power: Approx 0.25W Insulation standard : Class F Coil voltage form : DC Rated voltage(V) : 250VAC Volume（mm³) : 29.0×12.7×15.7 (mm) Package Includes: 1 x Hongfa 24V 10A DC HF115F-H/024-1ZS3B 8-Pin SPDT Power Relay
