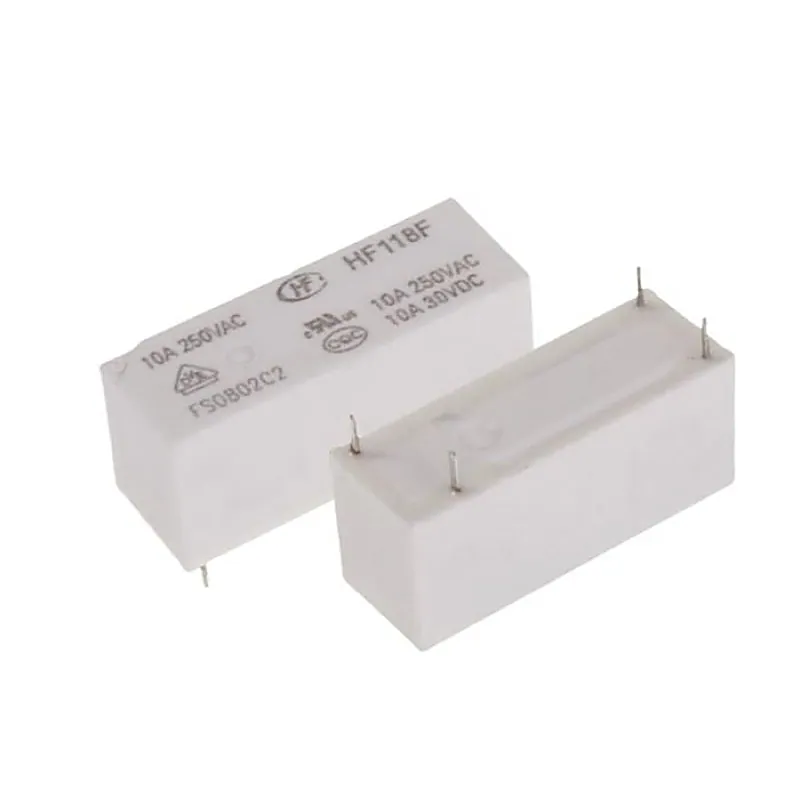

Hongfa 24V 10A DC HF118F/024-1D6 Series 4 Pins SPST High Power Relay

Hongfa 24V 10A DC HF118F/024-1D6 Series 4 Pins SPST High Power Relay offers low height, 10A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. 10 mm narrow and 12.5 mm high power relay for applications in which the switching capacity of conventional signal relay is not sufficient any more. Meets the VDE 0700 and corresponds to the insulation requirements according to VDE 0631. Features: 10A switching capability 5kV dielectric strength (between coil and contacts) Low height: 12.5 mm Creepage distance >8mm Meeting VDE 0700, 0631 reinforce insulation Product in accordance to IEC 60335-1 available 1 pole configurations available UL insulation system: Class F Plastic sealed and flux proofed types available Specifications: Type: HF118F/024 Coil nominal voltage : 24 V DC Min. pick-up voltage : 16.8 V DC Max. pick-up voltage : 36 V DC Control mode : monostable, 1 coil Resistance (coil) : 2350 Ω Contact type : 1 Form A Contact material : AgNi Switching voltage (max.): 125 V DC, 440 V AC Switching current (max.):10 A Max. switching capacity: 300 W, 2500 VA Connection: Solder pins Min. temperature : -40 °C Max. temperature : +85 °C Weight : 8gm Dimension : 28.5 x 10.1 x 12.5 (in mm) RoHS-compliant : Yes Product type : PCB relay Package Includes: 1 x Hongfa 24V 10A DC HF118F/024-1D6 Series 4 Pins SPST High Power Relay
