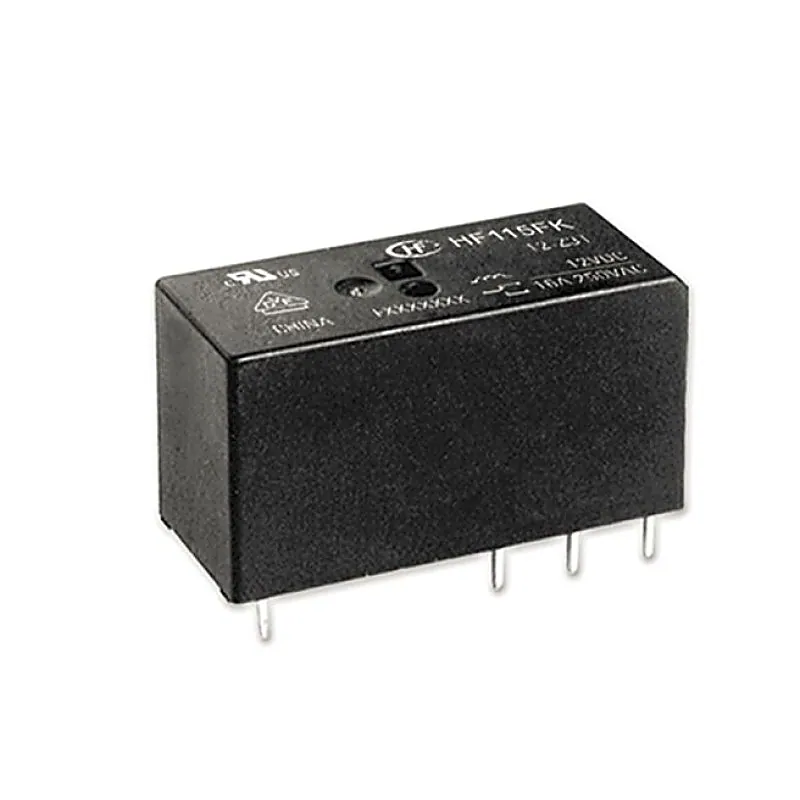

Hongfa 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay

Hongfa 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay

Hongfa 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay Features: Low height: 15.7 mm 16A switching capability 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm Meeting reinforce insulation Flux proofed type Product in accordance to IEC 60335-1 available UL insulation sy

+ 18% GST (added at checkout)

In stock — 20 units ready

• Low height: 15.7 mm
• 16A switching capability
• 5kV dielectric strength (between coil and contacts)
• Creepage distance: 10mm
• Meeting reinforce insulation
• Flux proofed type
• Product in accordance to IEC 60335-1 available
• UL insulation system: Class F
• Type : HF115FK/024-2ZS4T
• Switching Current (A,Res.load) : 16A
• Contact arrangement : 2 Form C
• Coil version : single contact
• Terminal Type : PCB
• Mounting : PCB-THT
• Construction : Flux proofed
• Terminals : 5.0mm 2 pole 16A
• Contact material : AgSnO2
• Sort : Standard
• Coil voltage : 24
• Coil power: Approx 0.4
• Insulation standard : Class F
• Coil voltage form : DC
• Rated voltage(V) : 250VAC
• Volume（mm³) : 29.0×12.7×15.7 (mm)
