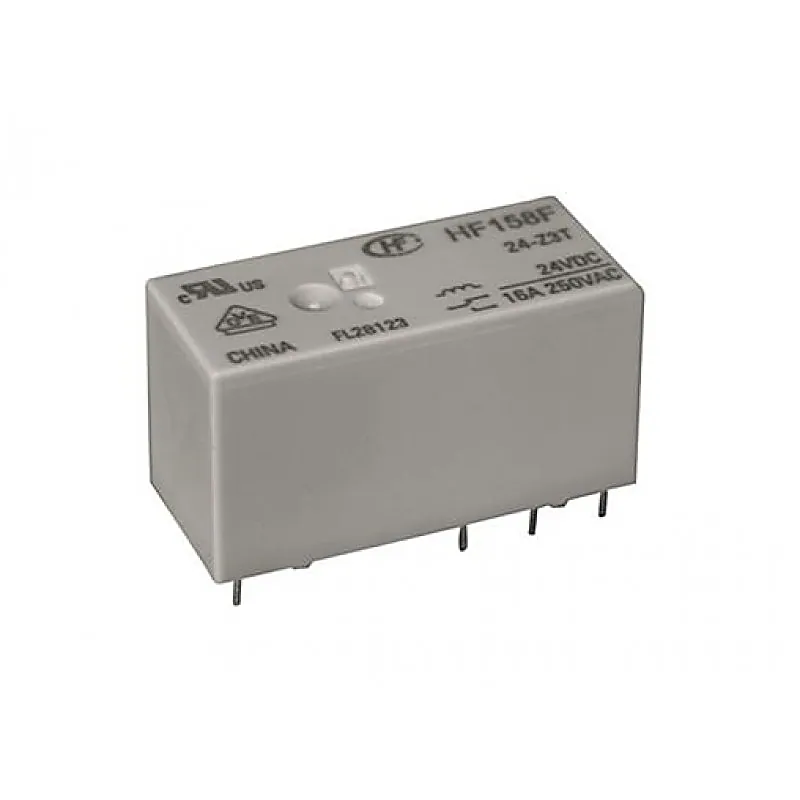

Hongfa 24V 16A DC HF158F/24-H3T 6-Pin SPST Power Relay
Hongfa 24V 16A DC HF158F/24-H3T 6-Pin SPST Power Relay
Hongfa 24V 16A DC HF158F/24-H3T 6-Pin SPST Power Relay Features: 16A switching capability Low height: 15.7 mm 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm, meet reinforce insulation UL insulation system: Class F Product in accordance to IEC 60335-1 available Sockets av
+ 18% GST (added at checkout)
In stock — 452 units ready
- 16A switching capability
- Low height: 15.7 mm
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm, meet reinforce insulation
- UL insulation system: Class F
- Product in accordance to IEC 60335-1 available
- Sockets available
- Plastic sealed and flux proofed types available
- Type :HF158F/24-H3T
- Switching Current (A,Res.load) : 16A
- Contact arrangement : 1 Form A
- Coil version : single contact
- Terminal Type : PCB
- Mounting : PCB-THT
- Construction : Flux proofed
- Terminals : 3
- Contact material : AgSnO2
- Sort : Standard
- Coil voltage : 24
- Coil power: Approx 0.4W
- Insulation standard : Class F
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Volume（mm³) : 29.0×12.7×15.7 (mm)
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 24V 16A DC HF158F/24-H3T 6-Pin SPST Power Relay Features: 16A switching capability Low height: 15.7 mm 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm, meet reinforce insulation UL insulation system: Class F Product in accordance to IEC 60335-1 available Sockets available Plastic sealed and flux proofed types available Specifications: Type :HF158F/24-H3T Switching Current (A,Res.load) : 16A Contact arrangement : 1 Form A Coil version : single contact Terminal Type : PCB Mounting : PCB-THT Construction : Flux proofed Terminals : 3 Contact material : AgSnO2 Sort : Standard Coil voltage : 24 Coil power: Approx 0.4W Insulation standard : Class F Coil voltage form : DC Rated voltage(V) : 250VAC Volume（mm³) : 29.0×12.7×15.7 (mm) Package Includes: 1 x Hongfa 24V 16A DC HF158F/24-H3T 6-Pin SPST Power Relay
