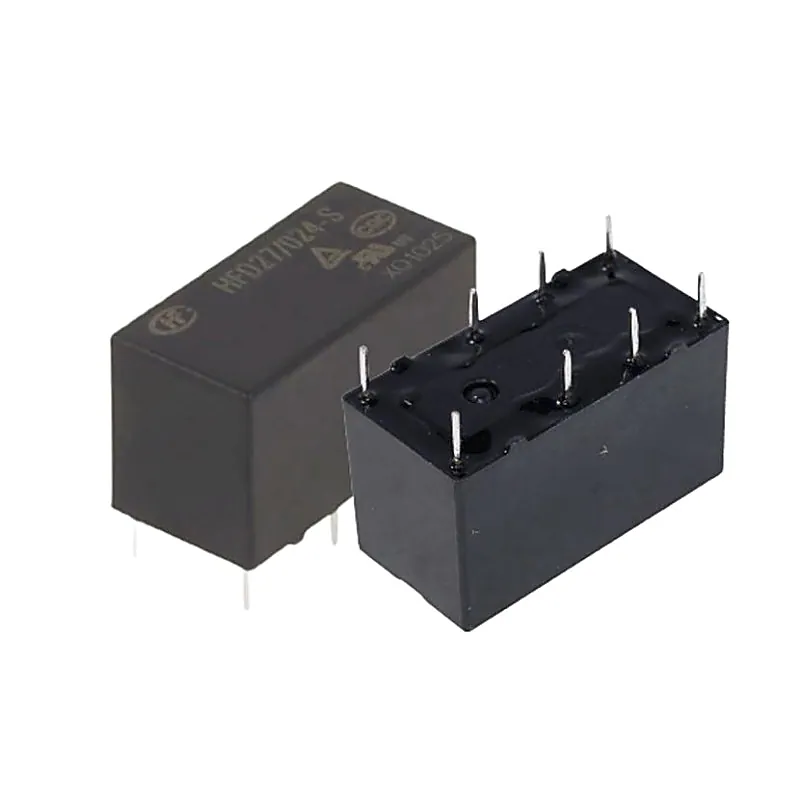

Hongfa 24V 2A DC HFD27/024-S 8 Pin DPDT PCB Mount Telecom Relay
Hongfa 24V 2A DC HFD27/024-S 8 Pin DPDT PCB Mount Telecom Relay
Subminiature signal relay offers switching capacity up to 125VA/60W, bifurcated contacts and environmentally friendly product (RoHS compliant) and Epoxy sealed for automatic-wave soldering and cleaning. Features and Specifications: Manufacturer: HONGFA RELAY Type of relay: Electromagnetic Contacts c
+ 18% GST (added at checkout)
In stock — 241 units ready
- Manufacturer: HONGFA RELAY
- Type of relay: Electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 24V DC
- AC contacts rating @R: 1A / 125V AC
- DC contacts rating @R: 2A / 30V DC
- Contact current max : 2A
- Switched voltage : max. 120V DC to max. 240V AC
- Relay variant : Subminiature
- Mounting : PCB
- Coil resistance : 2.88kΩ
- Coil voltage min : 18V DC
- Coil voltage max : 48V DC
- Operate time : 7ms
- Body dimensions : 20.2x10x11.5mm
- Release time : 4ms
- Coil power consumption : 200mW
- Operating temperature : -40...85°C
- Contact resistance : 100mΩ
- Contact material : AgNi + Au
- Terminal pitch : 5.08mm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Subminiature signal relay offers switching capacity up to 125VA/60W, bifurcated contacts and environmentally friendly product (RoHS compliant) and Epoxy sealed for automatic-wave soldering and cleaning. Features and Specifications: Manufacturer: HONGFA RELAY Type of relay: Electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC AC contacts rating @R: 1A / 125V AC (at resistive load) DC contacts rating @R: 2A / 30V DC (at resistive load) Contact current max : 2A Switched voltage : max. 120V DC to max. 240V AC Relay variant : Subminiature Mounting : PCB Coil resistance : 2.88kΩ Coil voltage min : 18V DC Coil voltage max : 48V DC Operate time : 7ms Body dimensions : 20.2x10x11.5mm Release time : 4ms Coil power consumption : 200mW Operating temperature : -40...85°C Contact resistance : 100mΩ Contact material : AgNi + Au Terminal pitch : 5.08mm Package Includes: 1 x Hongfa 24V 2A DC HFD27/024-S 8 Pin DPDT PCB Mount Telecom Relay
