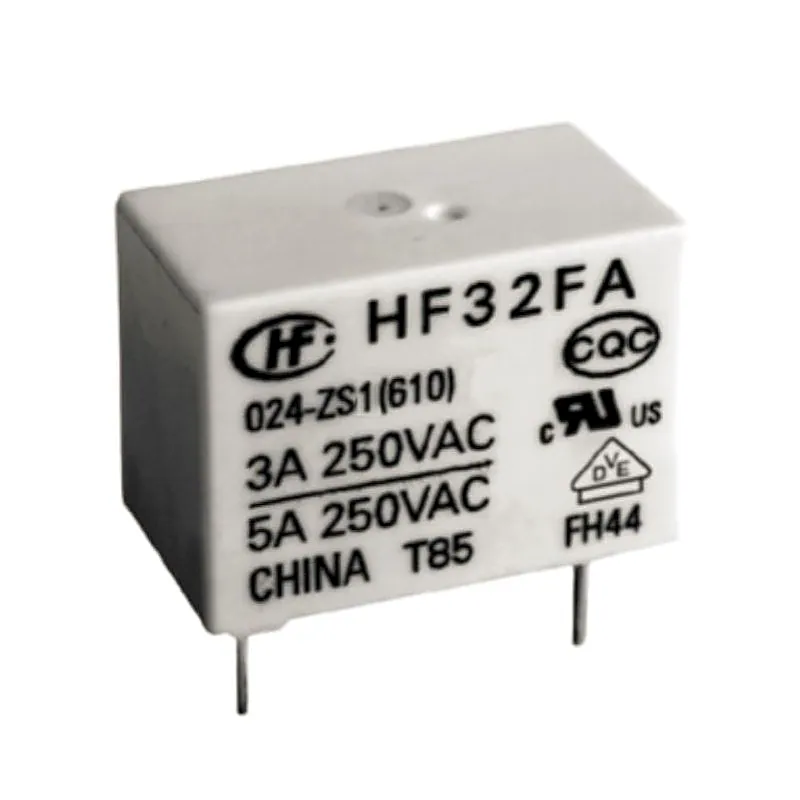

Hongfa 24V 5A DC HF32FA/024-ZS1 5 Pin SPDT Miniature Power Relay

Hongfa 24V 5A DC HF32FA/024-ZS1 5 Pin SPDT Miniature Power Relay

Hongfa 24V 5A DC HF32FA/024-ZS1 5 Pin SPDT Miniature Power Relay Features: 5A switching capability Creepage/clearance distance>8mm 5kV dielectric strength (between coil and contacts) 1 Form A meets VDE 0700, 0631 reinforce insulation 1 Form C meets VDE 0631 reinforce insulation UL insulation system:

+ 18% GST (added at checkout)

In stock — 180 units ready

• 5A switching capability
• Creepage/clearance distance>8mm
• 5kV dielectric strength (between coil and contacts)
• 1 Form A meets VDE 0700, 0631 reinforce insulation
• 1 Form C meets VDE 0631 reinforce insulation
• UL insulation system: Class F
• Product in accordance to IEC 60335-1 available
• Type : HF32FA/024-ZS1
• Switching Current (A,Res.load) : 5A
• Contact arrangement : 1 Form C
• Coil version : single contact
• Terminal Type : PCB
• Mounting : PCB-THT
• Construction : plastic sealed
• Terminals : type 1 terminal
• Contact material : AgNi
• Sort : Standard
• Coil voltage : 24
• Coil power: Approx. 0.45W
• Insulation standard : Class F
• Coil voltage form : DC
• Rated voltage(V) : 250VAC
• Volume（mm³) : 17.6×10.1×12.7 (mm)
