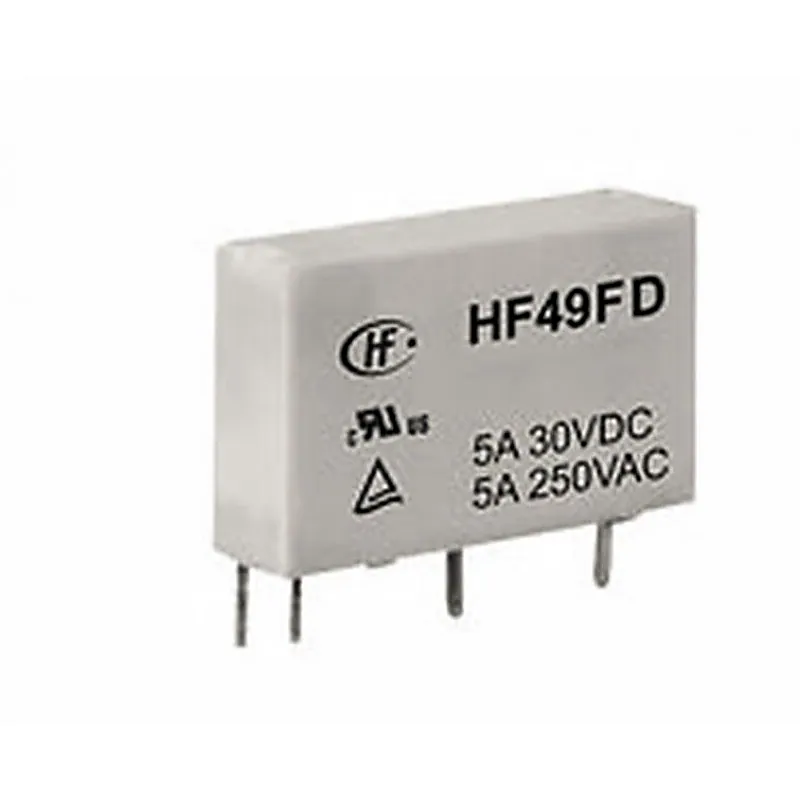

Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay
Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay
Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features and Specifications: Type
+ 18% GST (added at checkout)
In stock — 4352 units ready
- Type : HF49FD/024-1H12F
- Coil nominal voltage : 24 V DC
- Min. pick-up voltage : 16.8 V DC
- Max. pick-up voltage : 28.8 V DC
- Control mode : monostable, 1 coil
- Resistance (coil) : 3200 Ω
- Contact type : 1 maker
- Contact material : AgNi
- Switching voltage (max.) : 30 V DC, 250 V AC
- Switching current (max.) : 5 A
- Max. switching capacity 150 W, 1250 VA
- Connection : Solder pins
- Min. temperature : -40 °C
- Max. temperature : +85 °C
- Length : 20 mm
- Width : 5 mm
- Height : 12.5 mm
- Dimensions : (L x W x H) 20 x 5 x 12.5 mm
- Content : 1 pc(s)
- RoHS-compliant : Yes
- Product type : PCB relay
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features and Specifications: Type : HF49FD/024-1H12F Coil nominal voltage : 24 V DC Min. pick-up voltage : 16.8 V DC Max. pick-up voltage : 28.8 V DC Control mode : monostable, 1 coil Resistance (coil) : 3200 Ω Contact type : 1 maker Contact material : AgNi Switching voltage (max.) : 30 V DC, 250 V AC Switching current (max.) : 5 A Max. switching capacity 150 W, 1250 VA Connection : Solder pins Min. temperature : -40 °C Max. temperature : +85 °C Length : 20 mm Width : 5 mm Height : 12.5 mm Dimensions : (L x W x H) 20 x 5 x 12.5 mm Content : 1 pc(s) RoHS-compliant : Yes Product type : PCB relay Package Includes: 1 x Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay
