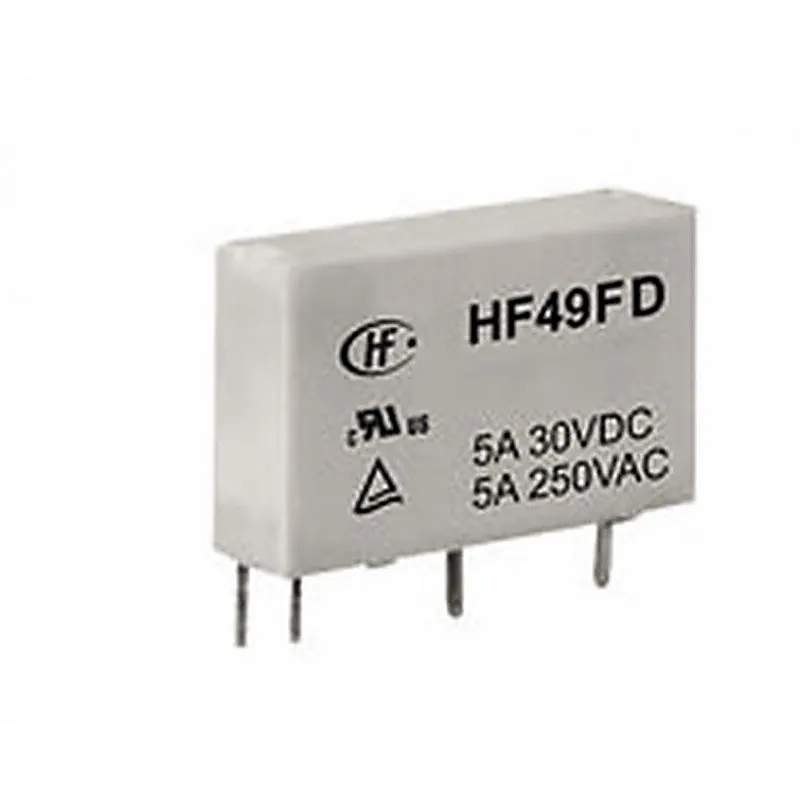

Hongfa 24V 5A DC HF49FD/024-1H12TFL 4 Pin SPST Miniature Power Relay
Hongfa 24V 5A DC HF49FD/024-1H12TFL 4 Pin SPST Miniature Power Relay
Hongfa 24V 5A DC HF49FD/024-1H12TFL 4 Pin SPST Miniature Power Relay offers Slim size (width 5mm, height 12.5mm), 5A switching capability, 3kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets IEC61131-2 reinforce insulation. Features and
+ 18% GST (added at checkout)
In stock — 256 units ready
- Brand : Hongfa
- Coil Voltage (DC) : 24 V
- Contact Arrangement : 1 Form A
- Contact Current Rating : 5 A
- Construction : Plastic sealed
- Insulation standard : Class A
- Rated voltage : 250V.a.c
- Contact plating : Without plating
- Contact capacity : AgNi
- Coil power : 0.12
- Creepage Distance : 4.2mm
- Electrical Distance : 3.5mm
- Insulation resistance : 1000MOhm
- Release time : < 5ms
- Operate time : < 10ms
- Dielectric strength (between coil & contacts) : 3000VAC 1min
- Mechanical endurance : 20000000
- Max Switching Voltage (VDC) : 30VDC
- Weight : 3gm
- Max Switching Current (AC) : 5A
- Electrical endurance : 50000
- Ambient temperature : -40~85C
- Max Switching Voltage (VAC) : 250VAC
- Size : 20x5x12.5mm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 24V 5A DC HF49FD/024-1H12TFL 4 Pin SPST Miniature Power Relay offers Slim size (width 5mm, height 12.5mm), 5A switching capability, 3kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets IEC61131-2 reinforce insulation. Features and Specifications: Brand : Hongfa Coil Voltage (DC) : 24 V Contact Arrangement : 1 Form A Contact Current Rating : 5 A Construction : Plastic sealed Insulation standard : Class A Rated voltage : 250V.a.c Contact plating : Without plating Contact capacity : AgNi Coil power : 0.12 Creepage Distance : 4.2mm Electrical Distance : 3.5mm Insulation resistance : 1000MOhm Release time : < 5ms Operate time : < 10ms Dielectric strength (between coil & contacts) : 3000VAC 1min Mechanical endurance : 20000000 Max Switching Voltage (VDC) : 30VDC Weight : 3gm Max Switching Current (AC) : 5A Electrical endurance : 50000 Ambient temperature : -40~85C Max Switching Voltage (VAC) : 250VAC Size : 20x5x12.5mm Package Includes: 1 x Hongfa 24V 5A DC HF49FD/024-1H12TFL 4 Pin SPST Miniature Power Relay
