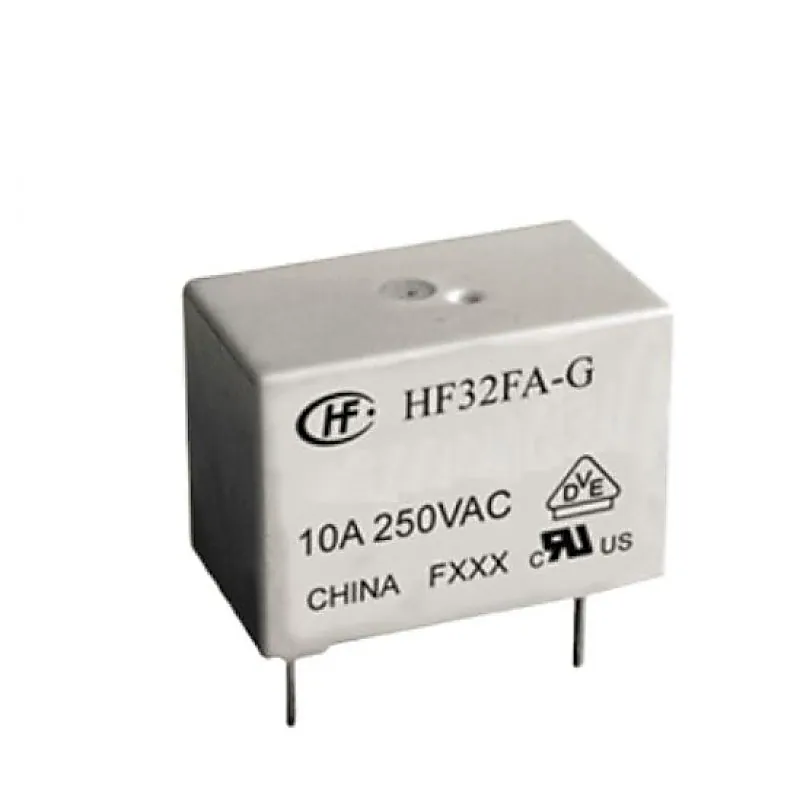

Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay

Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay

Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay Features: 10A switching capability Creepage/clearance distance>8mm 5kV dielectric strength (between coil and contacts) UL insulation system: Class F Meets VDE 0700, 0631 reinforce insulation Product in accordance to IEC 60335-1 avail

+ 18% GST (added at checkout)

In stock — 692 units ready

• 10A switching capability
• Creepage/clearance distance>8mm
• 5kV dielectric strength (between coil and contacts)
• UL insulation system: Class F
• Meets VDE 0700, 0631 reinforce insulation
• Product in accordance to IEC 60335-1 available
• Type :HF32FA-G/048-HT
• Switching Current (A,Res.load) : 10A
• Contact arrangement : 1 Form A
• Coil version : single contact
• Terminal Type : type 1 terminal
• Mounting : PCB-THT
• Construction : unsealed
• Terminals : type 1 terminal
• Contact material : AgSnO2
• Sort : Standard
• Coil voltage : 48
• Coil power: Approx. 0.45W
• Insulation standard : Class F
• Coil voltage form : DC
• Rated voltage(V) : 250VAC
• Volume（mm³) : 17.6×10.1×12.7 (mm)
