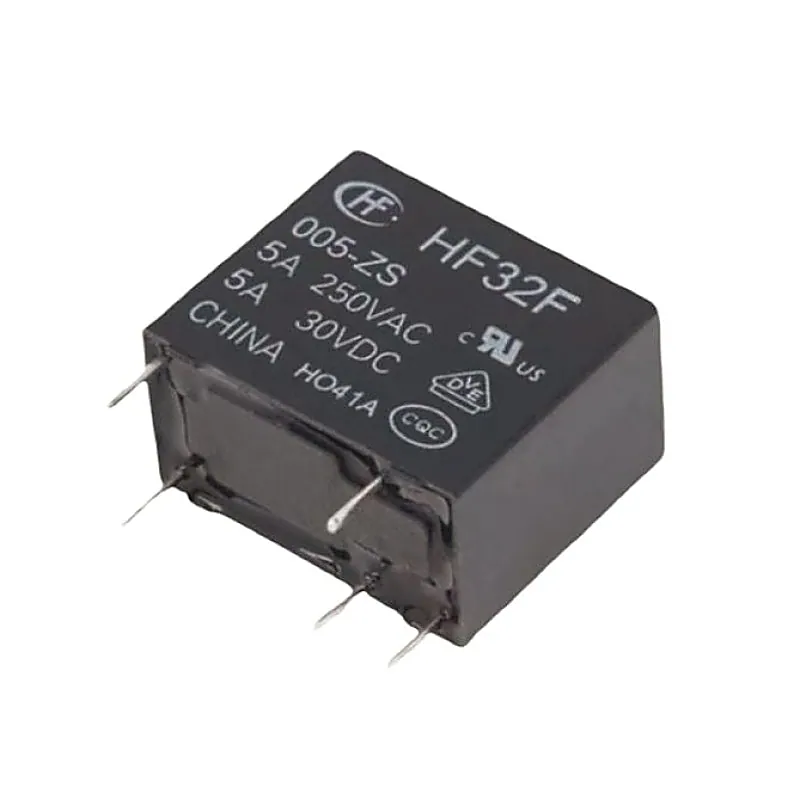

Hongfa 5V 5A DC HF32F/005-ZS 5 Pin SPDT Miniature Power Relay
Hongfa 5V 5A DC HF32F/005-ZS 5 Pin SPDT Miniature Power Relay
Hongfa 5V 5A DC HF32F/005-ZS 5 Pin SPDT Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features and Specifications: Brand : Hong
+ 18% GST (added at checkout)
In stock — 354 units ready
- Brand : Hongfa
- Contact Arrangement : 1 Form C
- Terminal type : PCB
- Contact version : Single contact
- Coil Voltage (DC) : 5 V
- Mounting : PCB-THT
- Coil power : Standard
- Construction : Plastic sealed
- Contact capacity : AgNi
- Dielectric strength (between coil & contacts) : 2500VAC 1min
- Release time : < 5ms
- Contact plating : Without plating
- Operate time : < 8ms
- Max Switching Voltage (VAC) : 250VAC
- Creepage Distance : 3.2mm
- Electrical endurance : 100000
- Ambient temperature : -40~70C
- Insulation resistance : 1000MOhm
- Size : 18.4x10.2x15.3mm
- Weight : 6gm
- Max Switching Voltage (VDC) : 30VDC
- Electrical Distance : 3.1mm
- Max Switching Current (AC) : 10AC
- Mechanical endurance : 5000000
- Contact Current Rating : 5 A
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 5V 5A DC HF32F/005-ZS 5 Pin SPDT Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features and Specifications: Brand : Hongfa Contact Arrangement : 1 Form C Terminal type : PCB Contact version : Single contact Coil Voltage (DC) : 5 V Mounting : PCB-THT Coil power : Standard Construction : Plastic sealed Contact capacity : AgNi Dielectric strength (between coil & contacts) : 2500VAC 1min Release time : < 5ms Contact plating : Without plating Operate time : < 8ms Max Switching Voltage (VAC) : 250VAC Creepage Distance : 3.2mm Electrical endurance : 100000 Ambient temperature : -40~70C Insulation resistance : 1000MOhm Size : 18.4x10.2x15.3mm Weight : 6gm Max Switching Voltage (VDC) : 30VDC Electrical Distance : 3.1mm Max Switching Current (AC) : 10AC Mechanical endurance : 5000000 Contact Current Rating : 5 A Package Includes: 1 x Hongfa 5V 5A DC HF32F/005-ZS 5 Pin SPDT Miniature Power Relay
