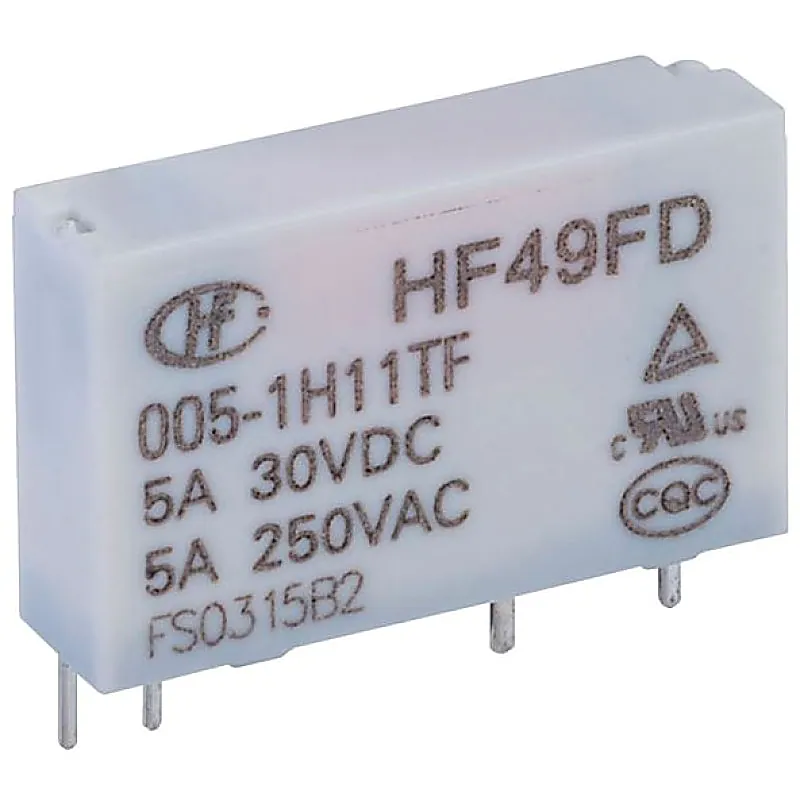

Hongfa 5V 5A DC HF49FD/005-1H11TF 4 Pin SPST Miniature Power Relay

The most commonly used switching device in electronics. There are two important parameters of the relay, first is the Trigger Voltage, this is the voltage required to turn on the relay that is to change the contact from Common → NC to Common → NO. Miniature high power relay offers low height, 5A switching capability, 3kV dielectric strength (between coil and contacts), and environmentally friendly product (RoHS Compliant) and meets IEC61131-2 reinforce insulation. Features and Specifications: Brand: Hongfa Model No: HF49FD-005-1H11TF Coil Voltage: 5VDC Switching Current: 5A Contact Configuration: SPST Coil Power: 120mW Coil Resistance: 1.2MΩ Isolation Coil To Contact: 3kV AC Maximum Switching Voltage AC: 250V Maximum Switching Voltage DC: 30V Case/Package: DIP Mounting Type: PCB Mount Terminal Type: PCB Pin Mechanical Endurance: 20000000 Electrical Endurance: 50000 Operate time: 10ms Release time: 5ms Temperature: -40~85C Contact Material: AgSnO2 RoHS Compliant: YES Depth: 5mm Length: 20.5mm Height: 12.5mm Weight: 8gm Package Includes: 1 x Hongfa 5V 5A DC HF49FD/005-1H11TF 4 Pin SPST Miniature Power Relay
