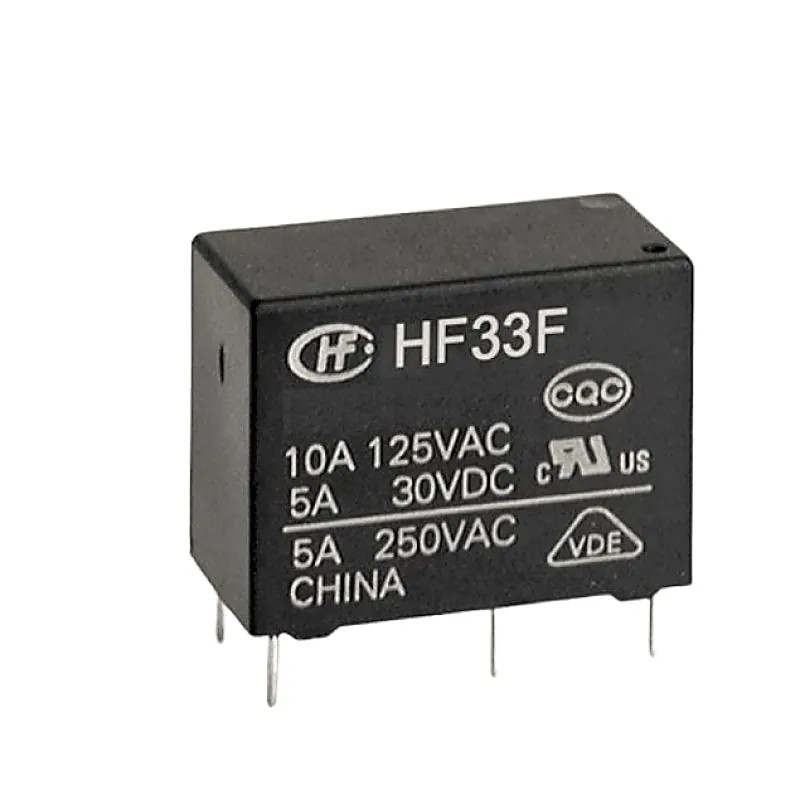

Hongfa 6V 10A DC HF33F/006-HSLT 4-Pin SPST Miniature Power Relay

Hongfa 6V 10A DC HF33F/006-HSLT 4-Pin SPST Miniature Power Relay

Hongfa 6V 10A DC HF33F/006-HSLT 4-Pin SPST Miniature Power Relay Features: Provide 5A 250VAC to meet 300000 switching capability specifications Creepage distance: 8mm (coil & contacts) Clearance distance: NO type 4.5mm, NC type 4mm 1 Form A、1 From B and 1 Form C configurations Subminiature, standard

+ 18% GST (added at checkout)

In stock — 5085 units ready

• Provide 5A 250VAC to meet 300000 switching capability specifications
• Creepage distance: 8mm (coil & contacts)
• Clearance distance: NO type 4.5mm, NC type 4mm
• 1 Form A、1 From B and 1 Form C configurations
• Subminiature, standard PCB layout
• Plastic sealed and flux proofed types available
• UL insulation system: Class F available
• Product in accordance to IEC 60335-1 available.
• Type :Hongfa HF33F/006-HSLT
• Switching Current (A,Res.load) : 10A
• Contact arrangement : 1 Form A
• Coil version : single contact
• Terminal Type : PCB
• Mounting : PCB-THT
• Construction : Plastic sealed
• Terminals : N/A
• Contact material : AgSnO2
• Sort : Single side stable
• Coil voltage : 6
• Coil power: Approx 0.2W
• Insulation standard : Class F
• Coil voltage form : DC
• Rated voltage(V) : 250VAC
• Volume（mm³) : 20.5×10.2×15.7 (mm)
