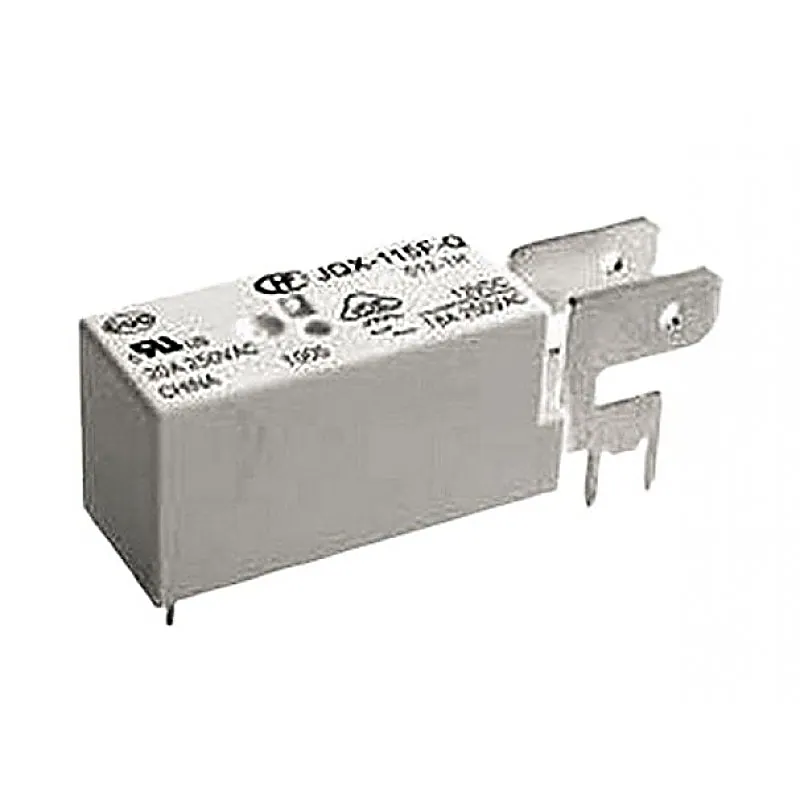

Hongfa 6V 16A DC JQX-115F-Q/006-1HT 6-Pin SPST Power Relay with Metal Holder Attached

Hongfa 6V 16A DC JQX-115F-Q/006-1HT 6-Pin SPST Power Relay with Metal Holder Attached

Hongfa 6V 16A DC JQX-115F-Q/006-1HT 6-Pin SPST Power Relay with Metal Holder Attached Features: Ambient temperature up to 125 °C 5kV dielectric strength (between coil and contacts) Low height: 15.7mm Creepage distance >8mm Meeting VDE 0700, 0631 reinforce insulation UL94, V-0 flammability class Prod

+ 18% GST (added at checkout)

In stock — 851 units ready

• Ambient temperature up to 125 °C
• 5kV dielectric strength (between coil and contacts)
• Low height: 15.7mm
• Creepage distance >8mm
• Meeting VDE 0700, 0631 reinforce insulation
• UL94, V-0 flammability class
• Product in accordance to IEC 60335-1 available
• Class F insulation
• Environmental friendly product (RoHS compliant)
• Outline Dimensions : (45.0 x 12.7 x 15.7) mm
• Type : JQX-115F-Q/006-1HT
• Switching Current (A, Res. load) : 16A
• Contact arrangement : 1 Form A
• Contact material : AgSnO2
• Construction : Flux sealed
• Coil voltage : 6
• Creepage Distance : 8mm
• Coil Power : 0.4W
• Unit Weight : 16gm
