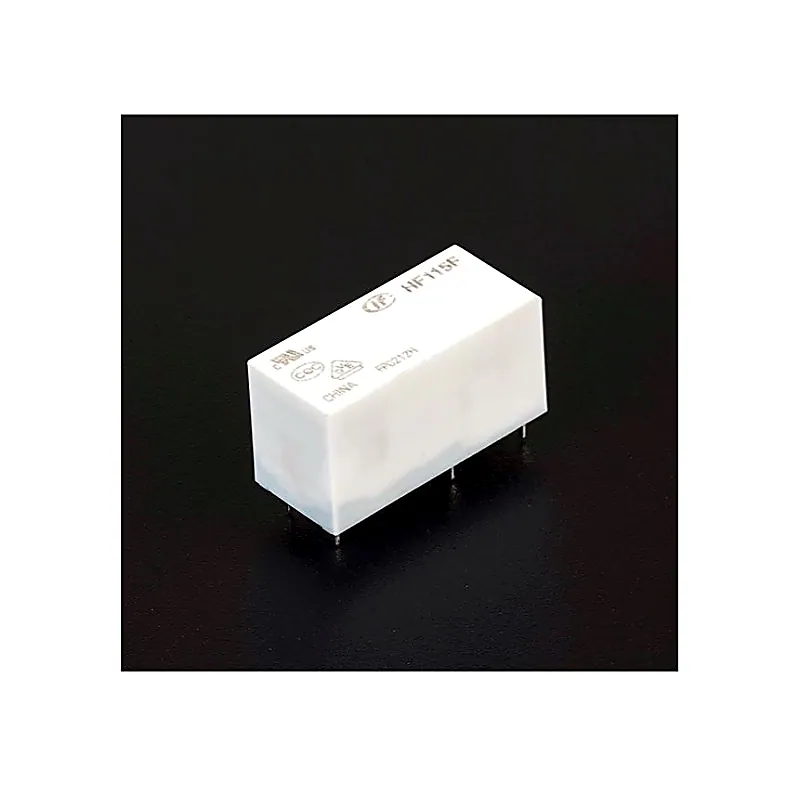

Hongfa 9V 16A DC HF115F-T/009-1H3 6-Pin SPST PCB Mount Power Relay
Hongfa 9V 16A DC HF115F-T/009-1H3 6-Pin SPST PCB Mount Power Relay
Hongfa 9V 16A DC HF115F-T/009-1H3 6-Pin SPST PCB Mount Power Relay Features: High Temperature: 105℃ Low height: 15.7 mm 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm Meeting VDE 0700, 0631 reinforce insulation Sockets available Product in accordance to IEC 60335-1 avail
+ 18% GST (added at checkout)
In stock — 711 units ready
- High Temperature: 105℃
- Low height: 15.7 mm
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm
- Meeting VDE 0700, 0631 reinforce insulation
- Sockets available
- Product in accordance to IEC 60335-1 available
- Plastic sealed and flux proofed types available
- UL insulation system: Class F
- Type : HF115F-T/009-1H3B
- Switching Current (A,Res.load) : 16A
- Contact arrangement : 1 Form A
- Coil version : single contact
- Terminal Type : PCB
- Mounting : PCB-THT
- Construction : Plastic sealed
- Contact material : AgSnO2
- Sort : Standard
- Coil voltage : 9
- Coil power: Approx 0.4
- Insulation standard : Class F
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Volume（mm³) : 29.0×12.7×15.7 (mm)
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 9V 16A DC HF115F-T/009-1H3 6-Pin SPST PCB Mount Power Relay Features: High Temperature: 105℃ Low height: 15.7 mm 5kV dielectric strength (between coil and contacts) Creepage distance: 10mm Meeting VDE 0700, 0631 reinforce insulation Sockets available Product in accordance to IEC 60335-1 available Plastic sealed and flux proofed types available UL insulation system: Class F Specifications: Type : HF115F-T/009-1H3B Switching Current (A,Res.load) : 16A Contact arrangement : 1 Form A Coil version : single contact Terminal Type : PCB Mounting : PCB-THT Construction : Plastic sealed Contact material : AgSnO2 Sort : Standard Coil voltage : 9 Coil power: Approx 0.4 Insulation standard : Class F Coil voltage form : DC Rated voltage(V) : 250VAC Volume（mm³) : 29.0×12.7×15.7 (mm) Package Includes: 1 x Hongfa 9V 16A DC HF115F-T/009-1H3 6-Pin SPST PCB Mount Power Relay
