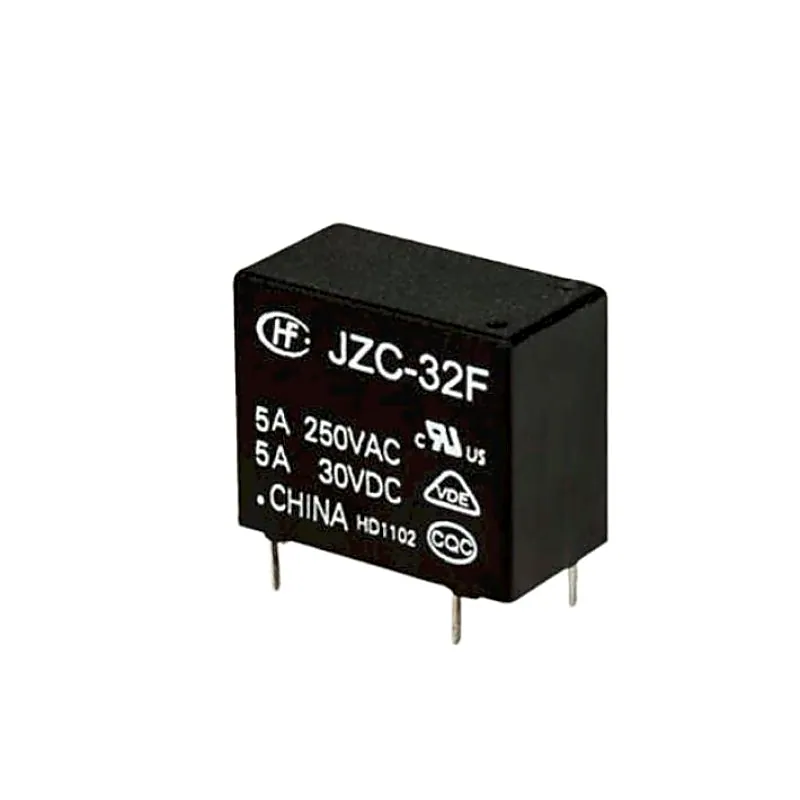

Hongfa 9V 5A DC JZC-32FA/009-HSL2 4 Pin SPST Miniature Power Relay
Hongfa 9V 5A DC JZC-32FA/009-HSL2 4 Pin SPST Miniature Power Relay
Hongfa 9V 5A DC JZC-32FA/009-HSL2 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features and Specifications: Manufac
+ 18% GST (added at checkout)
In stock — 958 units ready
- Manufacturer : HONGFA RELAY
- Relay type : Electromagnetic
- Contacts : SPDT
- Rated winding voltage : 5V DC
- Contact load AC @R : 5A / 125V AC
- Contact load DC @R : 5A / 30V DC
- Contact current max : 10A
- Switched voltage : Max. 30VDC, Max. 250VAC
- Relay version : Subminiature
- Mounting : PCB
- Winding resistance max : 55 ohm
- Winding voltage min : 3.75V DC
- Winding voltage max : 6.5V DC
- Response time : 8ms
- External dimensions : 18.4x10.2x15.3 mm
- Release time : 5ms
- Winding power : 450mW
- Working temperature : -40 to +70°C
- Contact resistance : 100 mΩ
- Contact material : AgCdO
- Weight : 6 gm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Hongfa 9V 5A DC JZC-32FA/009-HSL2 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation. Features and Specifications: Manufacturer : HONGFA RELAY Relay type : Electromagnetic Contacts : SPDT Rated winding voltage : 5V DC Contact load AC @R : 5A / 125V AC (with active load) Contact load DC @R : 5A / 30V DC (with active load) Contact current max : 10A Switched voltage : Max. 30VDC, Max. 250VAC Relay version : Subminiature Mounting : PCB Winding resistance max : 55 ohm Winding voltage min : 3.75V DC Winding voltage max : 6.5V DC Response time : 8ms External dimensions : 18.4x10.2x15.3 mm Release time : 5ms Winding power : 450mW Working temperature : -40 to +70°C Contact resistance : 100 mΩ Contact material : AgCdO Weight : 6 gm Package Includes: 1 x Hongfa 9V 5A DC JZC-32FA/009-HSL2 4 Pin SPST Miniature Power Relay
