Humidity Sensitive Switch Relay Module
Humidity Sensitive Switch Relay Module

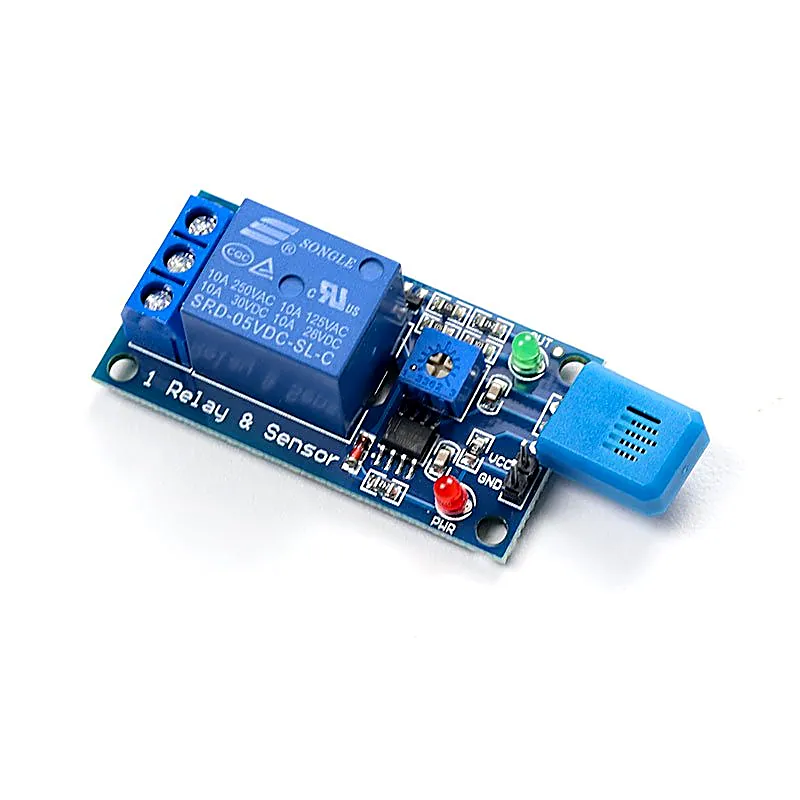

It is a Humidity Sensitive Switch Relay Module. The module uses a high-quality HR202 humidity sensor. The comparator output directly drives the relay to connect 220V AC or other equipment. With potentiometer to adjust the detection threshold . The sensor interface can be equipped with a pin and a we
+ 18% GST (added at checkout)
In stock — 7 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
It is a Humidity Sensitive Switch Relay Module. The module uses a high-quality HR202 humidity sensor. The comparator output directly drives the relay to connect 220V AC or other equipment. With potentiometer to adjust the detection threshold . The sensor interface can be equipped with a pin and a wet sensor with a lead. Package Includes: 1 x Humidity Sensitive Switch Relay Module. Specifications :- Maximum Voltage(V) 250V AC Supply Current (A) 150mA Trigger Voltage (VDC) 5 Switching Voltage (VAC) 250@10A Switching Voltage (VDC) 30@10A Opt. Relative Humidity(RH) 20% 85% Storage condition () 65 to 125 Operating Temperature (C) -40 to 80 Length (mm) 64 Width (mm) 26 Height (mm) 17 Weight (gm) 16
