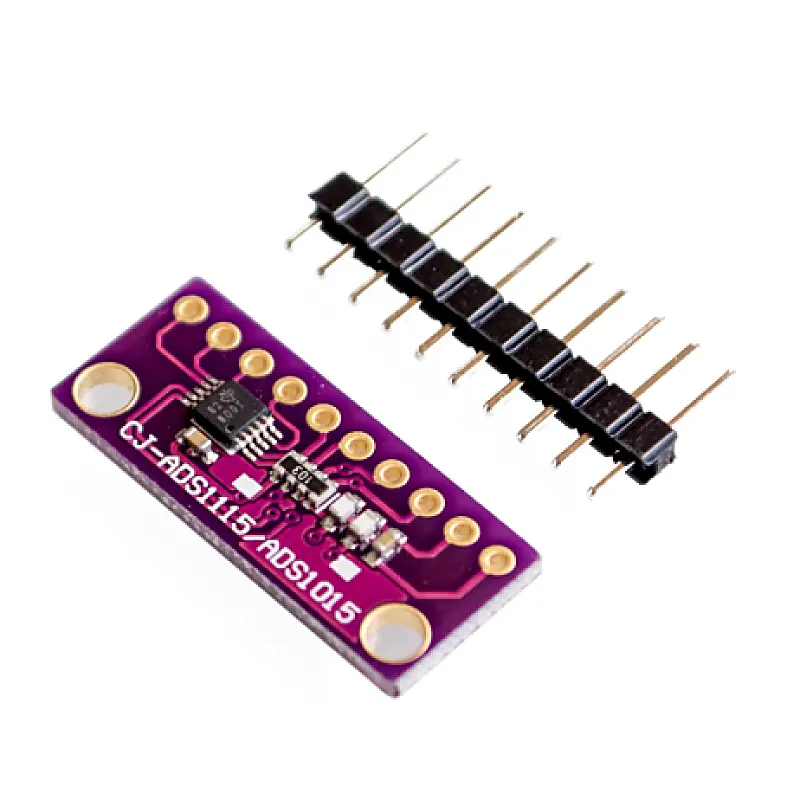

I2C ADS1115 16 Bit ADC 4 channel Module with Programmable Gain Amplifier

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-ended input channels or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals, and is super easy to use. It is a great general-purpose 16-bit converter. The chips fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1115s connected on a single 2-wire I2C bus for 16 single-ended inputs. Features: Low Current Consumption Pin Selected I2C Addresses Four Single-Ended or Two Differential Inputs. Programmable Comparator. Internal Oscillator Programmable Data Rate from 8 SPS to 860 SPS Package Includes: 1 x I2C ADS1115 16 Bit ADC 4 channel Module with Programmable Gain Amplifier 2.0V to 5.5V Specifications: Model HW-ADS1115 Input Supply Voltage (VDC) 2.0 ~ 5.5 Current Consumption (mA) 150 Single-Shot Mode Auto Shut-Down Data Rate 8 SPS to 860 SPS Interface I2C Length (mm) 26 Width (mm) 9 Height (mm) 2 Weight (gm) 0.8
