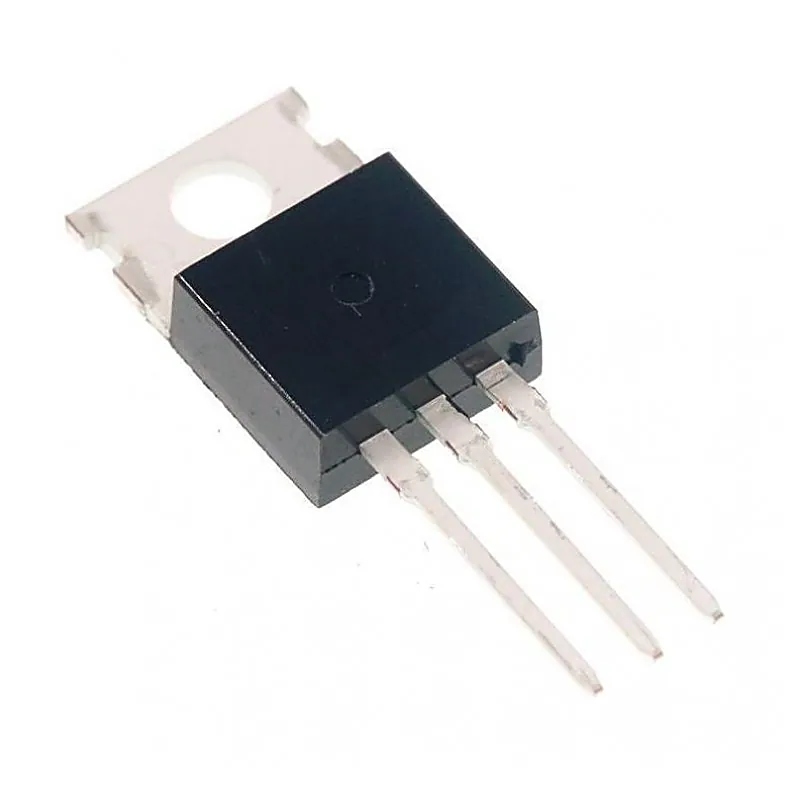

IGP15N60T IGBT - 600V 15A Low Loss IGBT

The IGP15N60T is a low loss IGBT : IGBT in TRENCH STOP™ and Field stop technology. It is designed for frequency converters and Uninterrupted Power Supply. The T RENCH STOP™ and Field stop technology for 600V applications offers : - very tight parameter distribution - high ruggedness, temperature stable behavior - very high switching speed Features:- • Very low VCE (sat) 1.5V (typ.) • Maximum Junction Temperature 175°C • Short circuit withstand time 5µs • Positive temperature coefficient in VCE(sat) • Low EMI • Pb-free lead plating; RoHS compliant • Qualified according to JEDEC1 for target applications Specification:- Symbol Parameter Ratings Units VCE Collector-emitter voltage, Tj ≥ 25°C 600 V IC DC collector current, limited by Tjmax A TC = 25°C, value limited by bond wire 26 TC = 100°C 23 ICpuls Pulsed collector current, tp limited by Tjmax 45 Turn off safe operating area, VCE = 600V, Tj = 175°C, tp = 1µs 45 VGE Gate-emitter voltage ±20 V tsc Short circuit withstand time V 5 µs GE = 15V, VCC ≤ 400V, Tj ≤150°C Ptot Power dissipation TC = 25°C 130 W Tj Operating junction temperature -40...+175 °C Tstg Storage temperature -55...+150 Soldering temperature waves oldering, 1.6 mm (0.063 in.) from case for 10s 260 Related Document:- IGP15N60T IGBT Data Sheet
