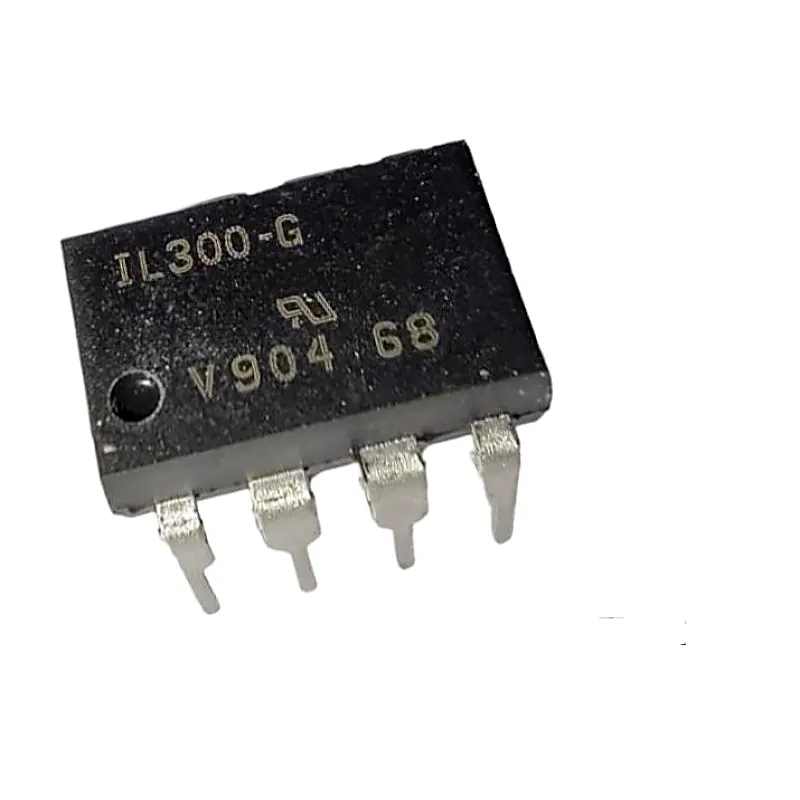

IL300G - High Linear Optocoupler IC

IL300G - High Linear Optocoupler IC The IL300 linear optocoupler consists of an AlGaAs IRLED irradiating an isolated feedback and an output PIN photodiode in a bifurcated arrangement. The feedback photodiode captures a percentage of the LEDs flux and generates a control signal that can be used to servo the LED drive current. This technique compensates for the LED’s non-linear, time, and temperature characteristics. The output PIN photodiode produces an output signal that is linearly related to the servo optical flux created by the LED. The time and temperature stability of the input-output coupler gain is insured by using matched PIN photodiodes that accurately track the output flux of the LED. Features:- Couples AC and DC signals 0.01% Servo Linearity Wide Bandwidth, >200KHz High Gain Stability, ±0.005%/C Low Input-Output Capacitance Low Power Consumption, < 15mw Isolation Test Voltage, 5300 VACRMS,1 sec. Internal Insulation Distance, >0.4 mm for VDE Underwriters Lab File #E52744 VDE Approval #0884 (Optional with Option 1, Add -X001 Suffix) IL300G Replaced by IL300-X006 Specifications:- Product Category: High Linearity Optocouplers Package/Case: DIP-8 Output Type: PIN Photodiode Number of Channels: 1 Channel Isolation Voltage: 5300Vrms Forward Current: 10 mA Forward Voltage: 1.25 V Reverse Voltage: 5 V Power Dissipation: 210mW Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 100 C Series: IL300 Current Transfer Ratio: 0.5 % to 1.1 % Fall Time:1.75 us Height: 3.81 mm Length: 10.16 mm Rise Time: 1.75 us Subcategory: Optocouplers Width: 6.6 mm Unit Weight: 3.244 g Applications:- Power Supply Feedback Voltage/Current Medical Sensor Isolation Audio Signal Interfacing Isolate Process Control Transducers Digital Telephone Isolation Package Includes:- 1 x IL300G - High Linear Optocoupler IC
