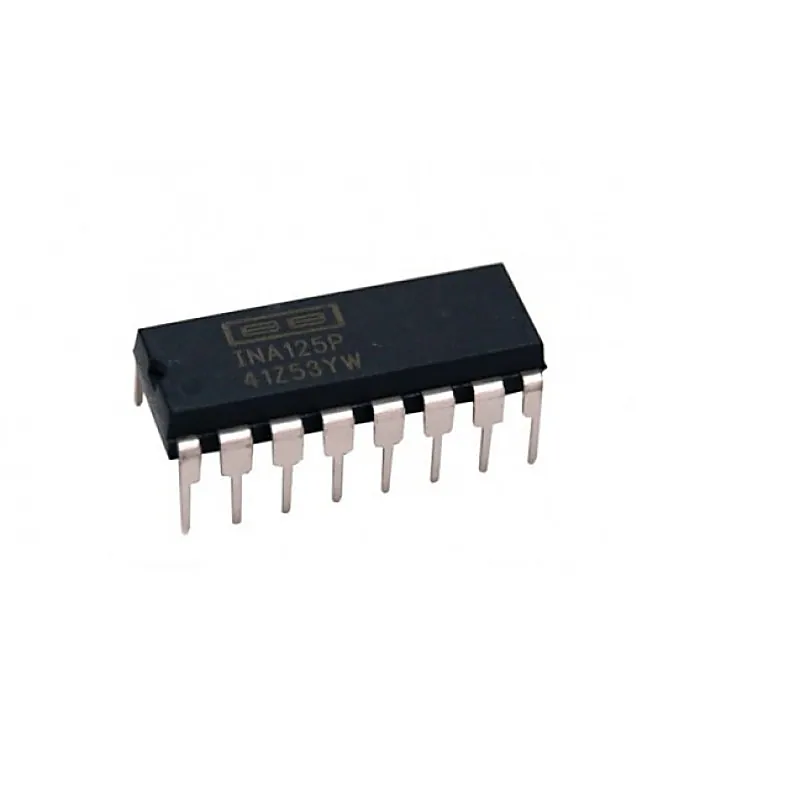

INA125 Instrumentation Amplifier with Precision Voltage Reference IC DIP-16 Package

The INA125 is a low power, high accuracy instrumentation amplifier with a precision voltage reference. It provides complete bridge excitation and precision differential-input amplification on a single integrated circuit. A single external resistor sets any gain from 4 to 10,000. The INA125 is laser-trimmed for low offset voltage (250µV), low offset drift (2µV/°C), and high common-mode rejection (100dB at G = 100). It operates on single (+2.7V to +36V) or dual (±1.35V to ±18V) supplies. The voltage reference is externally adjustable with pinselectable voltages of 2.5V, 5V, or 10V, allowing use with a variety of transducers. The reference voltage is accurate to ±0.5% (max) with ±35ppm/°C drift (max). Sleep mode allows shutdown and duty cycle operation to save power. The INA125 is available in 16-pin plastic DIP and SO-16 surface-mount packages and is specified for the –40°C to +85°C industrial temperature range. Features:- ● LOW QUIESCENT CURRENT: 460µA ● PRECISION VOLTAGE REFERENCE: 1.24V, 2.5V, 5V or 10V ● SLEEP MODE ● LOW OFFSET VOLTAGE: 250µV max ● LOW OFFSET DRIFT: 2µV/°C max ● LOW INPUT BIAS CURRENT: 20nA max ● HIGH CMR: 100dB min ● LOW NOISE: 38nV/√Hz at f = 1kHz ● INPUT PROTECTION TO ±40V ● WIDE SUPPLY RANGE Single Supply: 2.7V to 36V Dual Supply: ±1.35V to ±18V ● 16-PIN DIP AND SO-16 SOIC PACKAGES Specifications:- Parameter Specification Number of channels (#) 1 Vs (Max) (V) 36 Vs (Min) (V) 2.7 Input offset (+/-) (Max) (uV) 250 Gain (Min) (V/V) 4 Gain (Max) (V/V) 10000 Noise at 1 kHz (Typ) (nV/rt (Hz)) 38 CMRR (Min) (dB) 100 Input offset drift (+/-) (Max) (uV/C) 2 Input bias current (+/-) (Max) (nA) 25 Iq (Typ) (mA) 0.46 Bandwidth at min gain (Typ) (MHz) 0.15 Gain error (+/-) (Max) (%) 1 Operating temperature range (C) -40 to 85 Noise at 0.1 Hz-10 Hz (Typ) (uVpp) 0.8 Gain non-linearity (+/-) (Max) (%) 0.012 Related Document:- INA125 IC Datasheet
