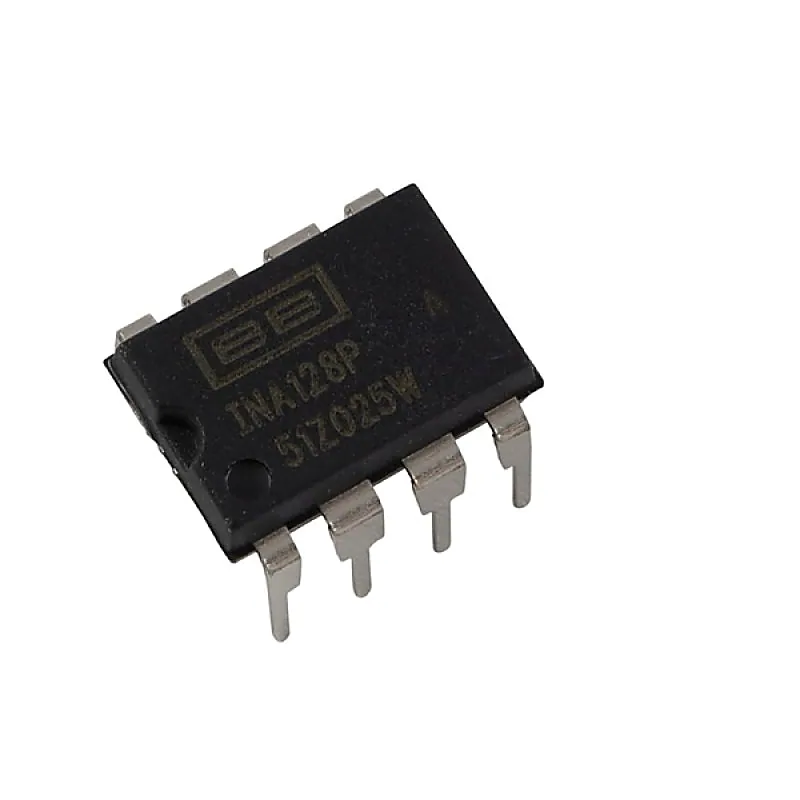

INA128 Low Power Instrumentation Amplifier IC DIP-8 Package

The INA128 is low-power, general purpose instrumentation amplifiers offering excellent accuracy. The versatile 3-op amp design and small size make these amplifiers ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain (200 kHz at G = 100). A single external resistor sets any gain from 1 to 10,000. The INA128 provides an industry-standard gain equation. The INA128 is available in 8-pin plastic DIP and SO-8 surface-mount packages, specified for the –40°C to +85°C temperature range. The INA128 is also available in a dual configuration, the INA2128. Features:- • A newer version of this device is now available: INA828 • Low offset voltage: 50 μV maximum • Low drift: 0.5 μV/°C maximum • Low Input Bias Current: 5 nA maximum • High CMR: 120 dB minimum • Inputs protected to ±40 V • Wide supply range: ±2.25 V to ±18 V • Low quiescent current: 700 μA • Packages: 8-pin plastic DIP, SO-8 Specification:- Parameter Specification Number of channels (#) 1 Vs (Max) (V) 36 Vs (Min) (V) 4.5 Input offset (+/-) (Max) (uV) 50 Gain (Min) (V/V) 1 Gain (Max) (V/V) 10000 Noise at 1 kHz (Typ) (nV/rt (Hz)) 8 CMRR (Min) (dB) 120 Input offset drift (+/-) (Max) (uV/C) 0.5 Input bias current (+/-) (Max) (nA) 5 Iq (Typ) (mA) 0.7 Bandwidth at min gain (Typ) (MHz) 1.3 Gain error (+/-) (Max) (%) 2 Operating temperature range (C) -40 to 85 Noise at 0.1 Hz-10 Hz (Typ) (uVpp) 0.2 Gain non-linearity (+/-) (Max) (%) 0.012 Related Document:- INA128 IC Datasheet
