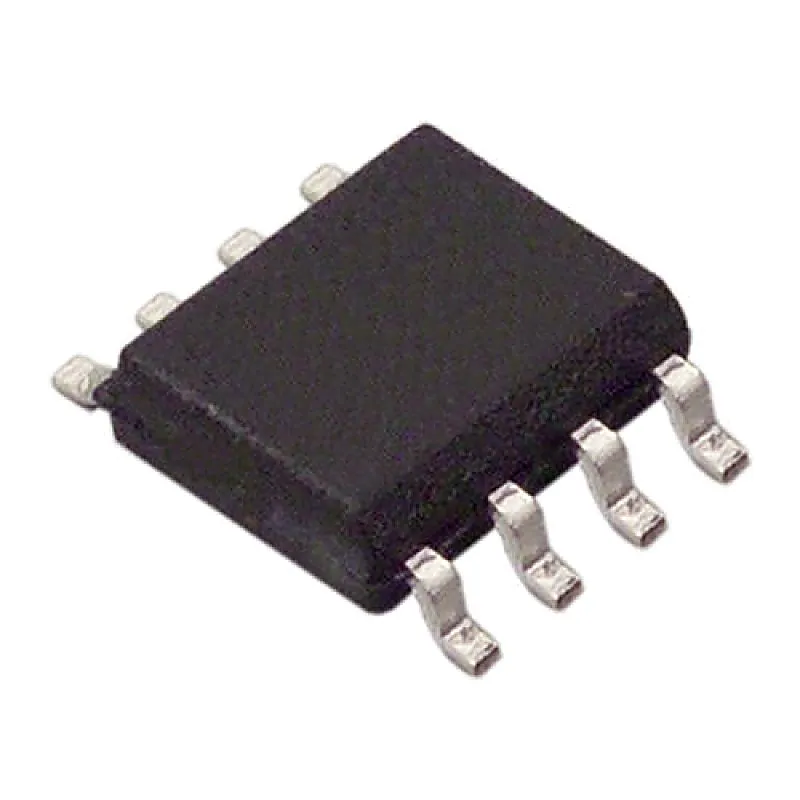

INA128 IC - (SMD Package) - Low Power Instrumentation Amplifier IC

The INA128 SMD are low-power, general-purpose instrumentation amplifiers offering excellent accuracy. The versatile three-operational- amplifier design and small size make them ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain. A single external resistor sets any gain from 1 to 10000. The INA128 SMD provides an industry-standard gain equation. The INA128 SMD are laser trimmed for very low offset voltage (25 PV Typ) and high common-mode rejection (93 dB at G 2 100). These devices operate with power supplies as low as ±2.25 V, and quiescent current of 2 mA, typically. Internal input protection can withstand up to V without damage. The high-temperature products use highly optimized silicon (die) solutions with design and process enhancements to maximize performance over extended temperatures. The INA128 SMD is available in an 8-pin SOIC-8 surface-mount package, specified for the —550C to 1750C temperature range. Features:- • Low Offset Voltage: 25 uv Typical • Low Input Bias Current: 50 nA Typical (t) • High CMR: 95 dB Typical") • Inputs Protected to ± 40V • Wide Supply Range: ±2.25 V to ± 18V • Low Quiescent Current: 2 mA Typical Application:- • Bridge Amplifiers • Thermo couple Amplifiers • RTD Sensor Amplifiers • Medical Instrumentation • Data Acquisition • Supports Extreme Temperature Applications: - Controlled Baseline - One Assembly/Test Site - One Fabrication Site - Available in Extreme Temperature Ranges (-550C to 2100c) - Extended Product Life Cycle - Extended Product-Change Notification - Product Traceability Specification:- Parameter Value Number of channels (#) 1 Vs (Max) (V) 36 Vs (Min) (V) 4.5 Input offset (+/-) (Max) (uV) 250 Gain (Min) (V/V) 1 Gain (Max) (V/V) 10000 Noise at 1 kHz (Typ) (nV/rt (Hz)) 8 CMRR (Min) (dB) 120 Input offset drift (+/-) (Max) (uV/C) 0.5 Input bias current (+/-) (Max) (nA) 5 Iq (Typ) (mA) 0.7 Bandwidth at min gain (Typ) (MHz) 1.3 Gain error (+/-) (Max) (%) 2.5 Operating temperature range -55 to +175 Noise at 0.1 Hz-10 Hz (Typ) (uVpp) 0.2 Gain non-linearity (+/-) (Max) (%) 0.012 Related Document:- INA128 SMD Data Sheet
