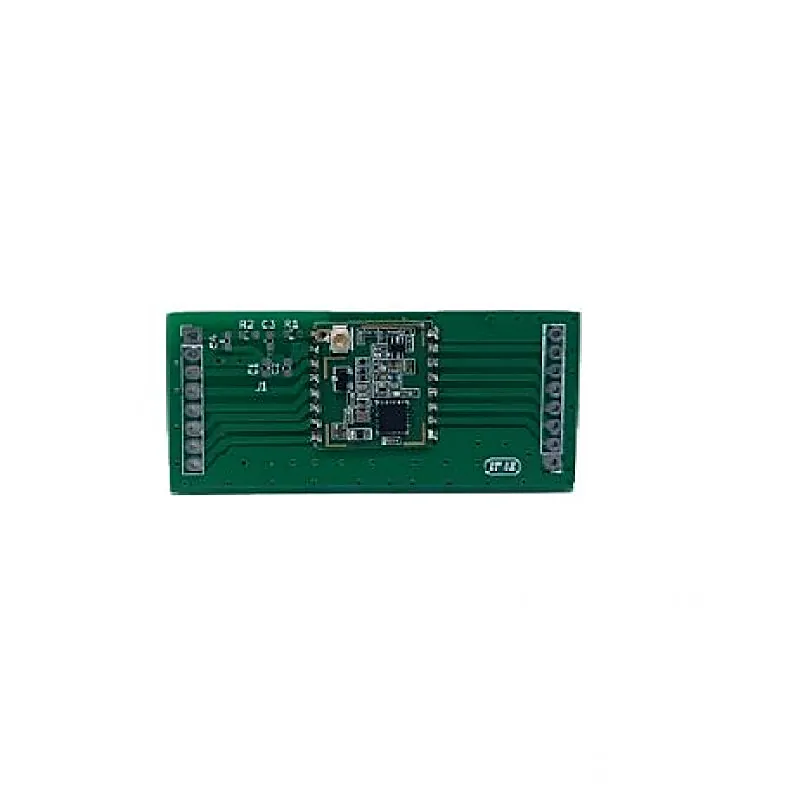

Indiesemic EVK-ISC-SX1262-B evolution board

ISC-SX1262-B is a LoRa series module designed and developed by INDIESEMIC. The module is used for ultra-long-range extended frequency communication, and its radio frequency chip SX1262 mainly uses LoRa remote modem, which is used for ultra long range extended frequency communication. It has strong anti-interference resistance and can minimize current consumption. With the help of SEMTECHs LoRa patented modulation technology, the SX1262 has high sensitivity over-148dBm, + 22dBm transmission power, long range transmission, and high reliability. At the same time, compared with the traditional modulation technology, LoRa modulation technology also has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not take into account the distance, anti-interference and power consumption simultaneously. Note: For more technical details go through Datasheet in the attachment section Features: Multiple Modulation Modes : Supports FSK, GFSK, and LoRa. Low Power Consumption : Max 140mA (TX), 4.2mA (RX), 1.6mA (standby). High Sensitivity : Down to -140dBm. Flexible Frequency Range : 803MHz to 930MHz. Compact Design : Small double-column stamp hole package. Package Includes: 1 x Indiesemic EVK-ISC-SX1262-B evolution board
