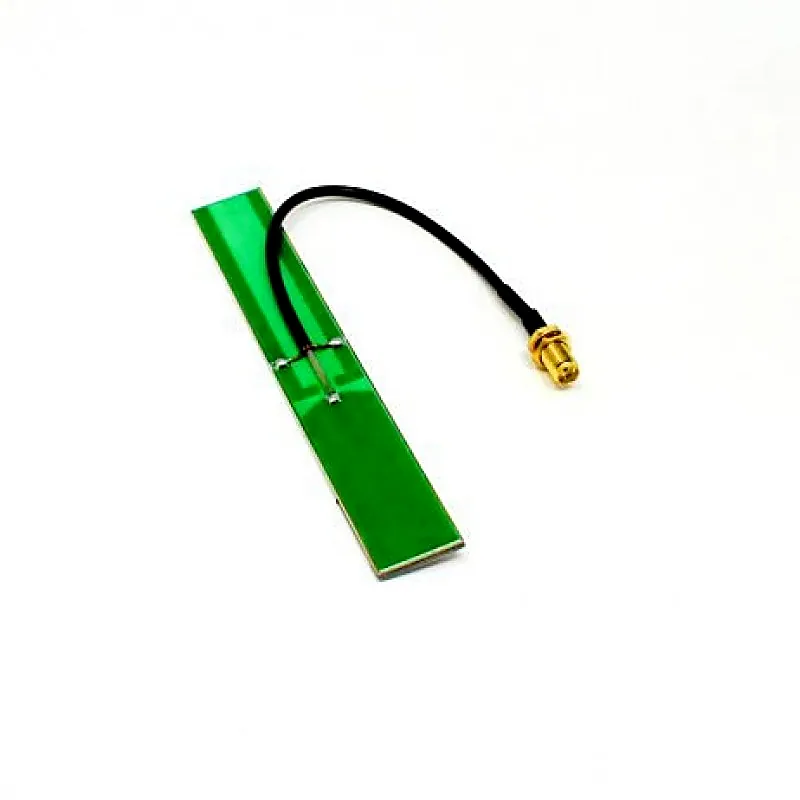

Internal PCB Antenna for 2G / 3G / 4G Applications

This is a PCB Antenna having a frequency of 698-960MHz & 1710-2690MHz with 1.5dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module. Application: 2G, 3G, 4G LTE, ISM Features: Compact Size High quality Low cost 3M high-quality adhesive Masking for corrosion-free Package Includes: 1 x Internal PCB Antenna for 2G / 3G / 4G Applications Specifications :- Model LWC-4G-PCB-03 Frequency Range 698 ~ 960MHz & 1710 ~ 2690MHz Gain ~ 0/1.5dBi Impedance () 50 VSWR < 2.5 Polarization Linear Power Handling (W) 5 HPBW H: 3600 V: 300 /400 Cable Mini Coax 1.13mm/0.81mm/ RG178/ RG316 Cable Length As required (suggested up to 20cm) Connector SMA Female Operating Temperature (C) -30 to 60 Humidity 5 75% Length (mm) 54 Width (mm) 34 Height (mm) 5 Weight (gm) 5
