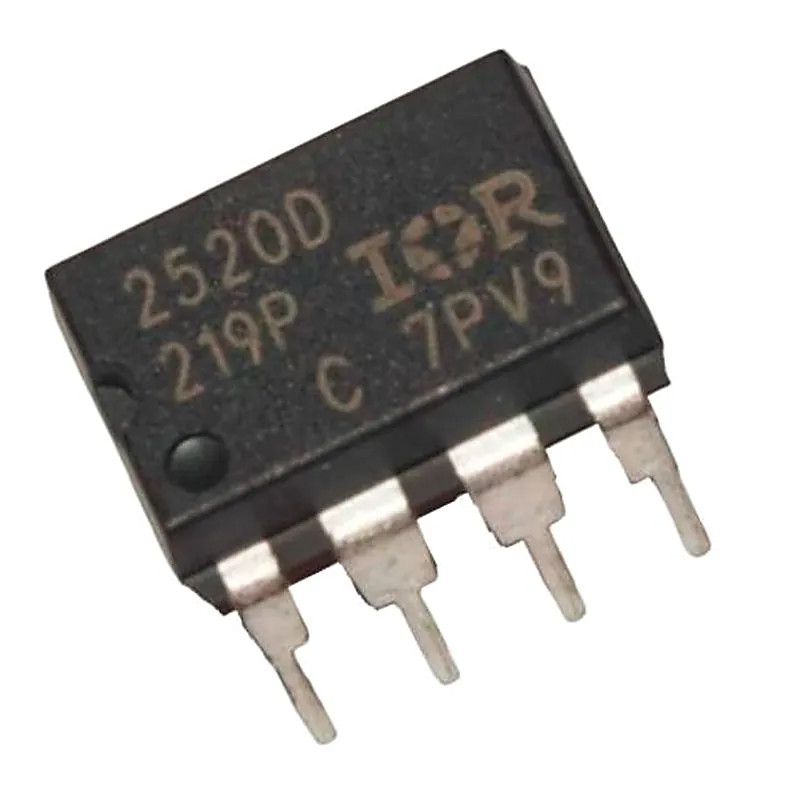

IR2520D IC - 600V Adaptive Ballast Controller IC

The IR2520D is a complete adaptive ballast controller and 600V half-bridge driver integrated into a single IC for fluorescent lighting applications. The IC includes adaptive zero-voltage switching (ZVS), internal crest factor over-current protection, as well as an integrated bootstrap FET. The heart of this IC is a voltage controlled oscillator with externally programmable minimum frequency. All of the necessary ballast features are integrated in a small 8-pin DIP or SOIC package. Features:- • 600V Half Bridge Driver • Integrated Bootstrap FET • Adaptive zero-voltage switching (ZVS) • Internal Crest Factor Over-Current Protection • 0 to 6VDC Voltage Controlled Oscillator • Programmable minimum frequency • Micropower Startup Current (80uA) • Internal 15.6V zener clamp on Vcc • Small DIP8/SO8 Package • Also available LEAD-FREE (PbF) Specifications:- Symbol Parameters Min Max Units VB High side floating supply voltage -0.3 625 V VS High side floating supply offset voltage VB-25 VB+0.3 V VHO High side floating output voltage VS-0.3 VB+0.3 V VLO Low side output voltage -0.3 VCC+0.3 V IVCO Voltage controlled oscillator input current -5 5 mA ICC Supply current -25 25 mA dVS/dt Allowable offset voltage slew rate -50 50 V/ns TJ Junction temperature -55 150 °C TS Storage temperature -55 150 °C TL Lead temperature 300 °C Related Document:- IR2520D IC Data Sheet
