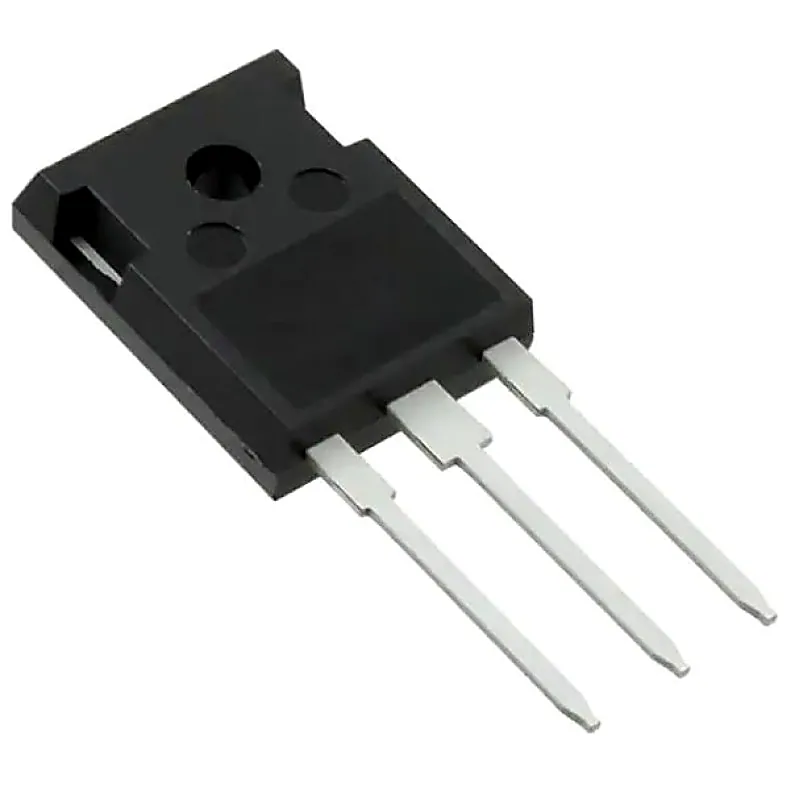

IRF440 MOSFET - 500V 8.8A N-Channel Power MOSFET TO-247 Package

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because of its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications. Features :- Dynamic dV/dt Rating Repetitive Avalanche Rated Isolated Central Mounting Hole Fast Switching Simple Drive Requirements Compliant to RoHS Directive 2002/95/EC Specifications :- Drain-Source Breakdown Voltage min : 500V Temperature Coefficient type : 0.78V/°C Gate-Source Threshold Voltage min : 2.0V Gate-Source Threshold Voltage max : 4.0V Gate-Source Leakage max : +100nA Drain-Source On-State Resistance : 0.85Ω Forward Transconductance min : 5.3S Package Includes :- 1 X IRF440 MOSFET - 500V 8.8A N-Channel Power MOSFET TO-247 Package
