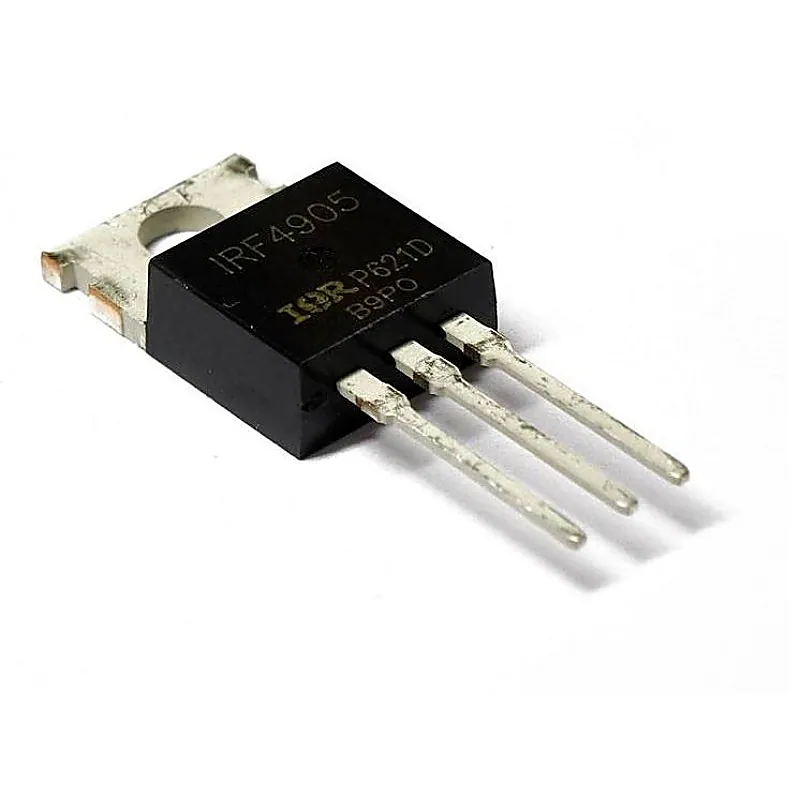

IRF4905 MOSFET - 55V 74A P-Channel HEXFET Power MOSFET TO-220 Package
IRF4905 MOSFET - 55V 74A P-Channel HEXFET Power MOSFET TO-220 Package
IRF4905 is fifth generation HEXFET® Power MOSFET utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with
+ 18% GST (added at checkout)
In stock — 3362 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
IRF4905 is fifth generation HEXFET® Power MOSFET utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. Features:- • Advanced process technology • Ultra low on-resistance • Dynamic dv/dt rating • Fast switching • Fully avalanche rated Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity P-Channel Drain-Source Breakdown Voltage (Vds) 55V Continuous Drain Current (Id) 74A Drain-Source Resistance (Rds On) 20mOhms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 180 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 200W Related Documents:- IRF4905 MOSFET Datasheet
