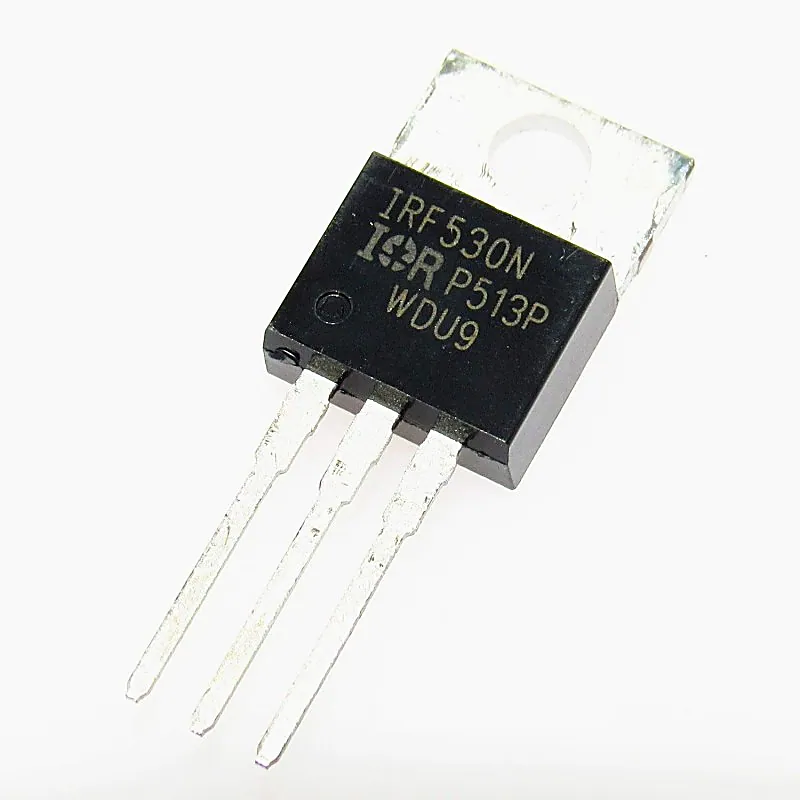

IRF530 MOSFET - 100V 17A N-Channel Power MOSFET TO-220 Package
IRF530 MOSFET - 100V 17A N-Channel Power MOSFET TO-220 Package
IRF530 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approxim
+ 18% GST (added at checkout)
In stock — 1467 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
IRF530 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. Features:- • Dynamic dV/dt rating • Repetitive avalanche rated • Fast switching • Ease of paralleling • Simple drive requirements • Compliant to RoHS directive 2002/95/EC Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 100V Continuous Drain Current (Id) 17A Drain-Source Resistance (Rds On) 90mOhms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 37 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 70W Related Documents IRF530 MOSFET Datasheet
