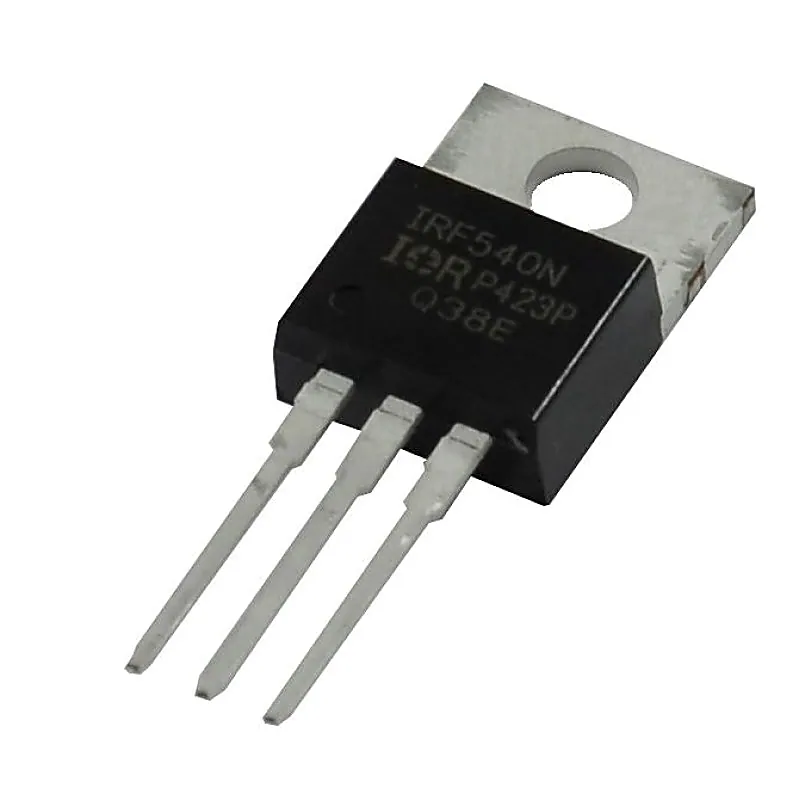

IRF540 MOSFET - 100V 33A N-Channel HEXFET Power MOSFET TO-220 Package
IRF540 MOSFET - 100V 33A N-Channel HEXFET Power MOSFET TO-220 Package
IRF540 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approxim
+ 18% GST (added at checkout)
In stock — 6484 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
IRF540 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. Features • Dynamic dV/dt rating • Repetitive avalanche rated • Fast switching • Ease of paralleling • Simple drive requirements • Compliant to RoHS directive 2002/95/EC Detailed Specifications Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 100V Continuous Drain Current (Id) 33A Drain-Source Resistance (Rds On) 44mOhms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 71 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 130W Related Documents IRF540 MOSFET Datasheet
