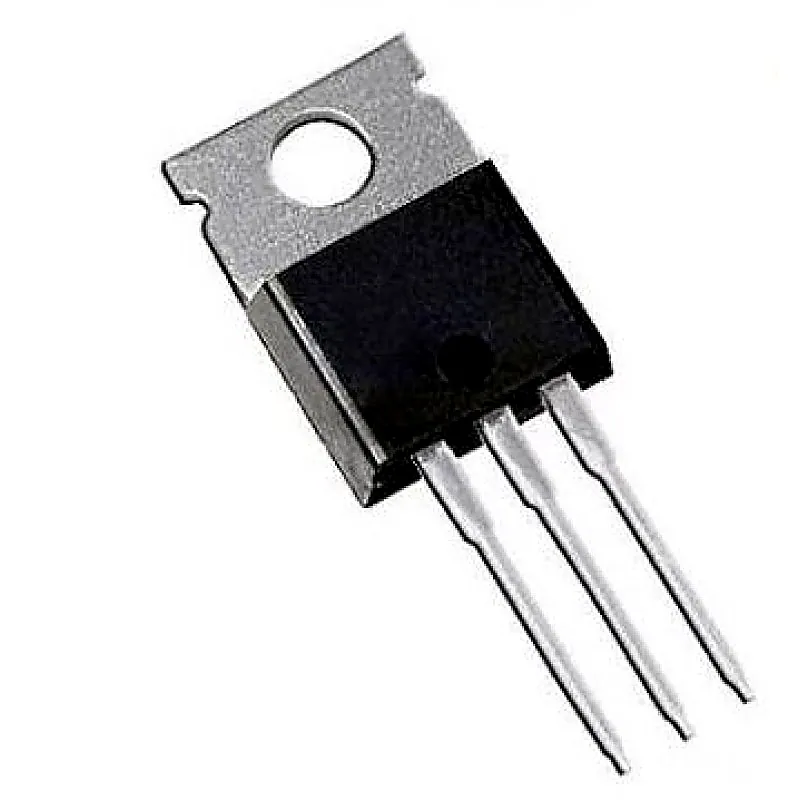

IRF610 MOSFET - 200V 3.3A N-Channel Power MOSFET TO-220 Package
IRF610 MOSFET - 200V 3.3A N-Channel Power MOSFET TO-220 Package
IRF610 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approxim
+ 18% GST (added at checkout)
In stock — 921 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
IRF610 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. Features:- • Dynamic dV/dt rating • Repetitive avalanche rated • Fast switching • Ease of paralleling • Simple drive requirements • Compliant to RoHS directive 2002/95/EC Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 200V Continuous Drain Current (Id) 3.3A Drain-Source Resistance (Rds On) 1.5Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 8.2 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 36W Related Documents:- IRF610 MOSFET Datasheet
