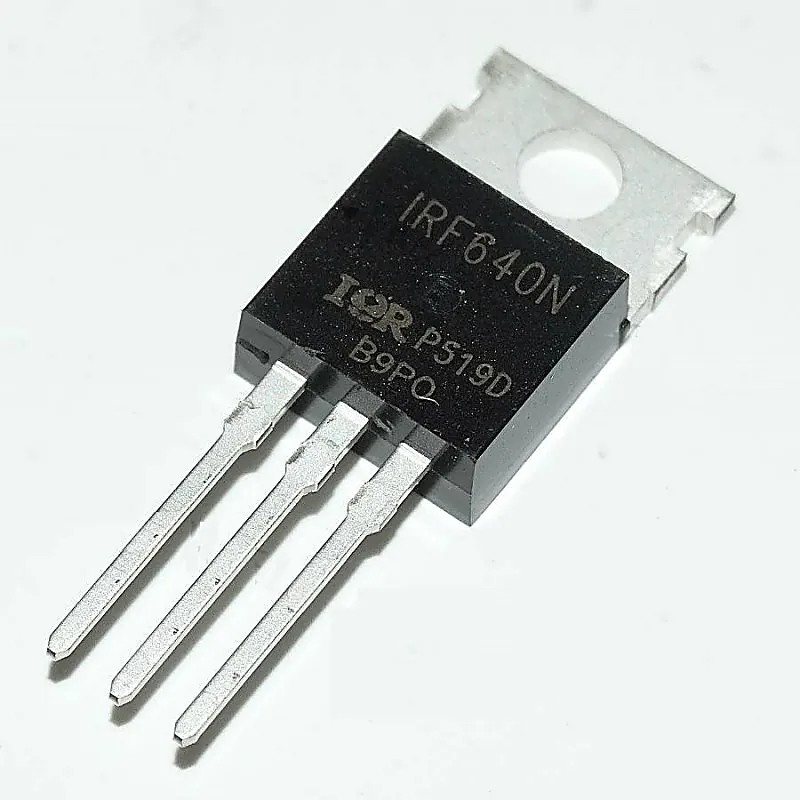

IRF640 MOSFET - 200V 18A N-Channel Power MOSFET TO-220 Package
IRF640 MOSFET - 200V 18A N-Channel Power MOSFET TO-220 Package
IRF640 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approxim
+ 18% GST (added at checkout)
In stock — 795 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
IRF640 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 150 W. Features:- • Dynamic dV/dt rating • Repetitive avalanche rated • Fast switching • Ease of paralleling • Simple drive requirements Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 200V Continuous Drain Current (Id) 18A Drain-Source Resistance (Rds On) 0.15Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 70 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 150W Related Documents:- IRF640 MOSFET Datasheet
