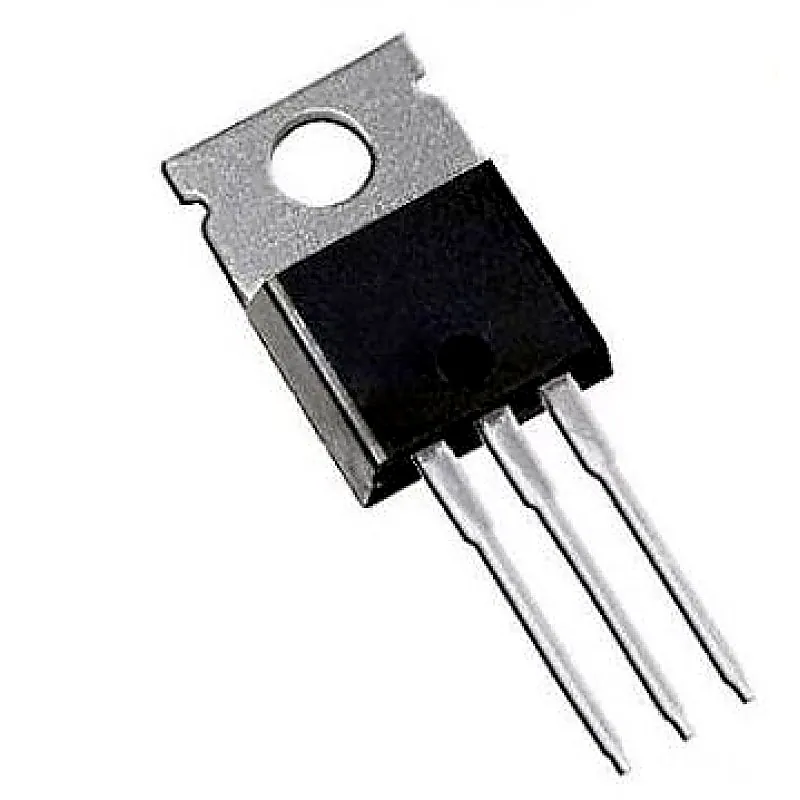

IRF730 MOSFET - 400V 5.5A N-Channel Power MOSFET TO-220 Package
IRF730 MOSFET - 400V 5.5A N-Channel Power MOSFET TO-220 Package
IRF730 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approxim
+ 18% GST (added at checkout)
In stock — 314 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
IRF730 third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 74 W. Features:- • Dynamic dV/dt rating • Repetitive avalanche rated • Fast switching • Ease of paralleling • Simple drive requirements • Compliant to RoHS directive 2002/95/EC Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 400V Continuous Drain Current (Id) 5.5A Drain-Source Resistance (Rds On) 1Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 38 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 74W Related Documents:- IRF730 MOSFET Datasheet
