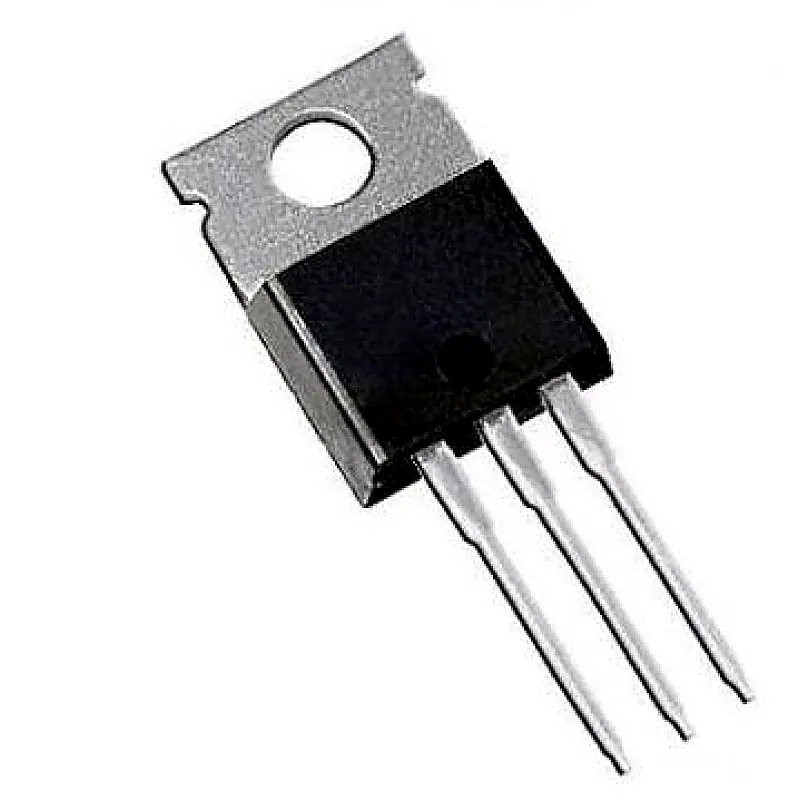

IRF820 MOSFET - 500V 2.5A N-Channel Power MOSFET TO-220 Package

IRF820 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Dynamic dV/dt rating • Repetitive avalanche rated • Fast switching • Ease of paralleling • Simple drive requirements • Compliant to RoHS directive 2002/95/EC Detailed Specifications Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 500V Continuous Drain Current (Id) 2.5A Drain-Source Resistance (Rds On) 3Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 17 nC Operating Temperature Range -65 - 150°C Power Dissipation (Pd) 50W Related Documents IRF820 MOSFET Datasheet
