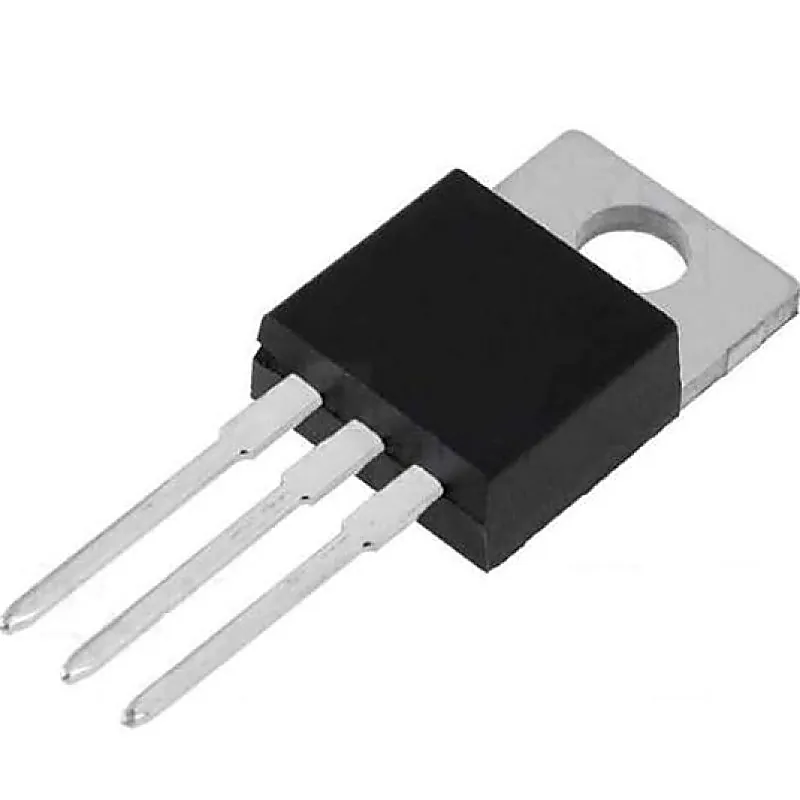

IRF9640 MOSFET - 200V 11A P-Channel Power MOSFET TO-220 Package

IRF9640 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Dynamic dv/dt rating • Fast switching • Fully avalanche rated • Ease of paralleling • Simple drive requirements Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity P-Channel Drain-Source Breakdown Voltage (Vds) -200V Continuous Drain Current (Id) -11A Drain-Source Resistance (Rds On) 0.5Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 44 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 125W Related Documents IRF9640 MOSFET Datasheet
