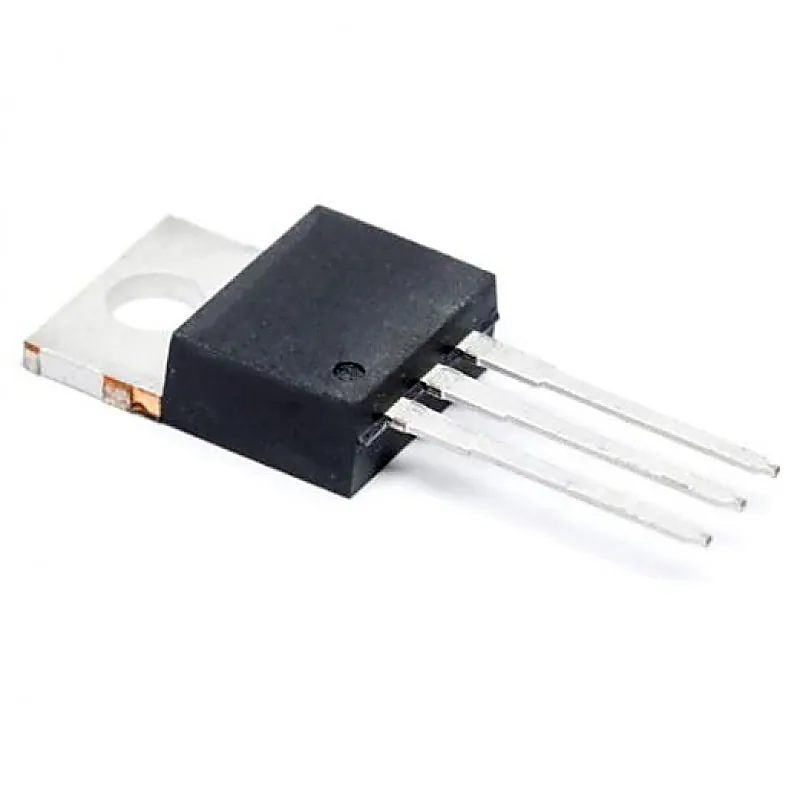

IRF9Z34 MOSFET - 60V 18A P-Channel Power MOSFET TO-220 Package

IRF9Z34 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Dynamic dV/dt rating • 100% avalanche rated • Fast switching • Ease of paralleling • Simple Drive Requirements • P-Channel • Advanced process technology Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity P-Channel Drain-Source Breakdown Voltage (Vds) -60V Continuous Drain Current (Id) -18A Drain-Source Resistance (Rds On) 0.14Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 34 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 88W Related Documents IRF9Z34 MOSFET Datasheet
