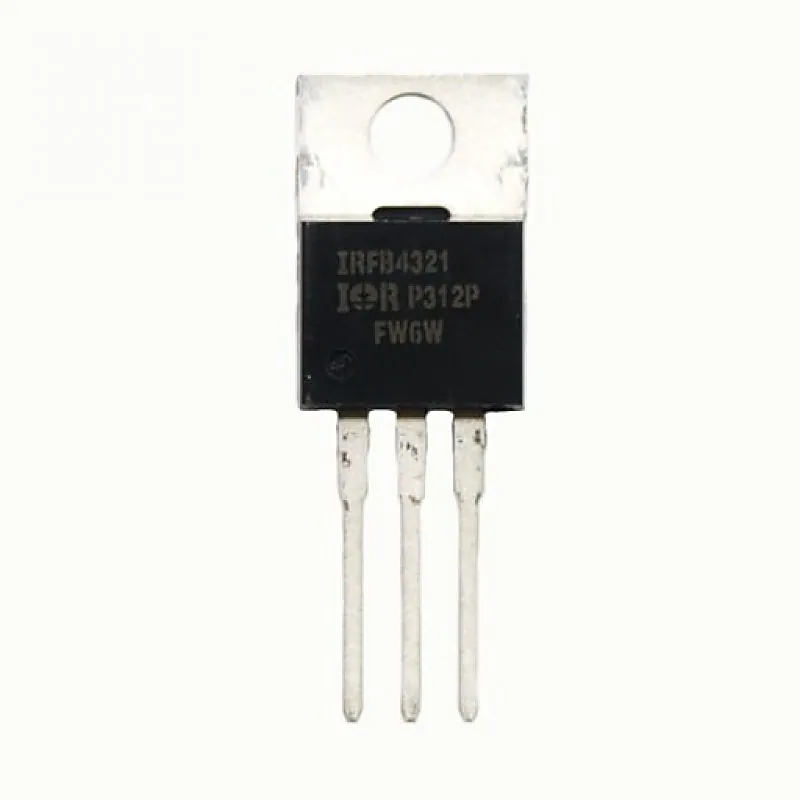

IRFB4321 MOSFET - 150V 85A N-Channel Power MOSFET TO-220 Package

IRFB4321 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • High efficiency synchronous rectification in SMPS • Uninterruptible power supply • High speed power switching • Hard switched and high frequency circuits Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 150V Continuous Drain Current (Id) 85A Drain-Source Resistance (Rds On) 15mOhms Gate-Source Voltage (Vgs) 30V Gate Charge (Qg) 110 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 350W Related Documents:- IRFB4321 MOSFET Datasheet
