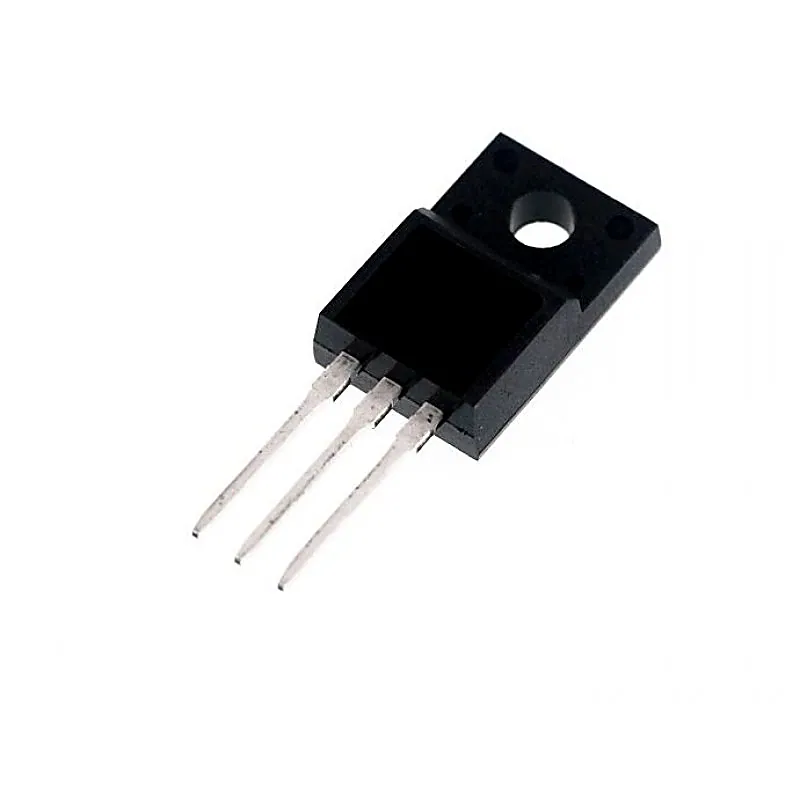

IRFI644 MOSFET - 250V 7.9A N-Channel Power MOSFET TO-220 Fullpak package

IRFI644 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Isolated package • High voltage isolation • Sink to lead creepage distance = 4.8 mm • Dynamic dV/dt rating • Low thermal resistance • Lead (Pb)-free available Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 250V Continuous Drain Current (Id) 7.9A Drain-Source Resistance (Rds On) 0.28Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 68 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 40W Related Documents IRFI644 MOSFET Datasheet
