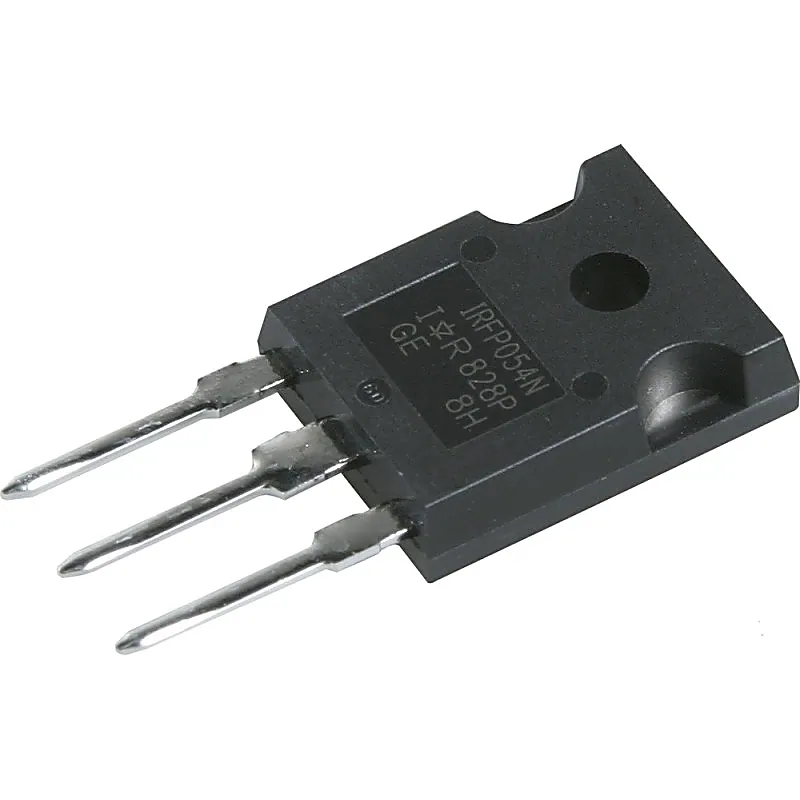

IRFP054N MOSFET - 55V 81A N-Channel HEXFET Power MOSFET TO-247 Package

IRFP054N is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Advanced process technology • Dynamic dv/dt rating • Fast switching • Fully avalanche rated Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 55V Continuous Drain Current (Id) 81A Drain-Source Resistance (Rds On) 0.012Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 130 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 170W Related Documents:- IRFP054N MOSFET Datasheet
