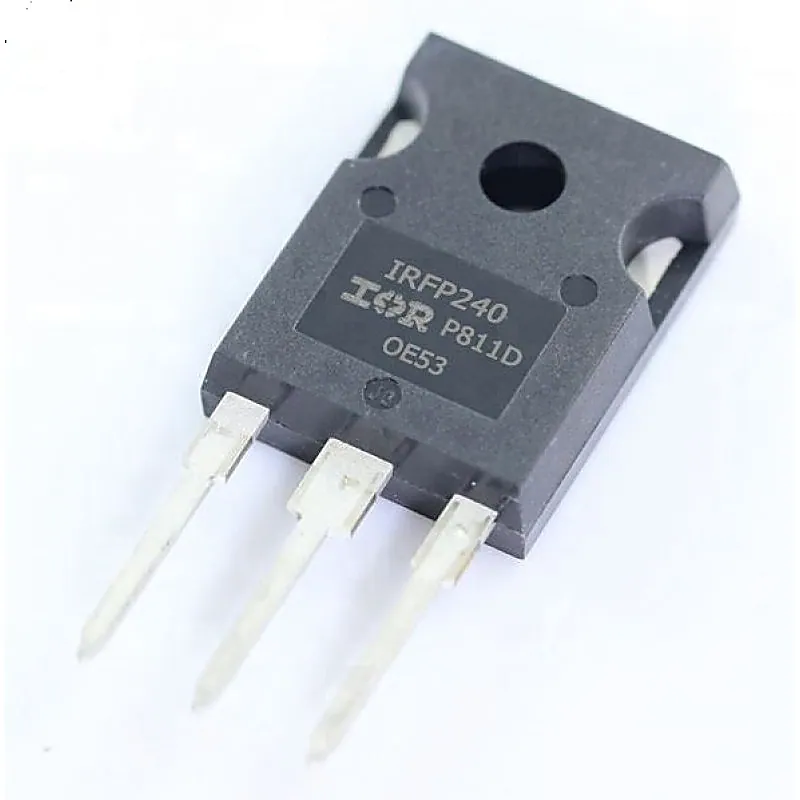

IRFP240 MOSFET - 200V 20A N-Channel Power MOSFET TO-247 Package

IRFP240 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Dynamic dV/dt Rating • Repetitive avalanche rated • Isolated central mounting hole • Fast switching • Ease of paralleling • Simple drive requirements • Compliant to RoHS directive 2002/95/EC Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 200V Continuous Drain Current (Id) 20A Drain-Source Resistance (Rds On) 0.18Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 70 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 150W Related Documents:- IRFP240 MOSFET Datasheet
