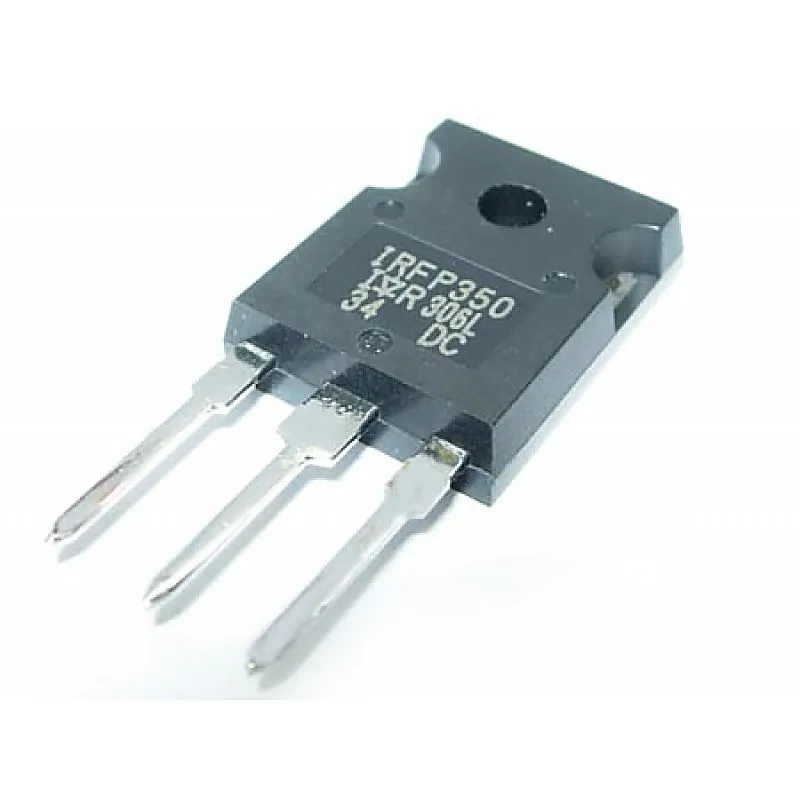

IRFP350 MOSFET - 400V 16A N-Channel Power MOSFET TO-247 Package

IRFP350 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Avalanche Rugged Technology • Lower Input Capacitance • Extended Safe Operating Area • Lower Leakage Current: 10µA (Max.) @ VDS = 400V • Improved Gate Charge Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 400V Continuous Drain Current (Id) 16A Drain-Source Resistance (Rds On) 300mOhms Gate-Source Voltage (Vgs) 30V Gate Charge (Qg) 150 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 190W Related Documents IRFP350 MOSFET Datasheet
