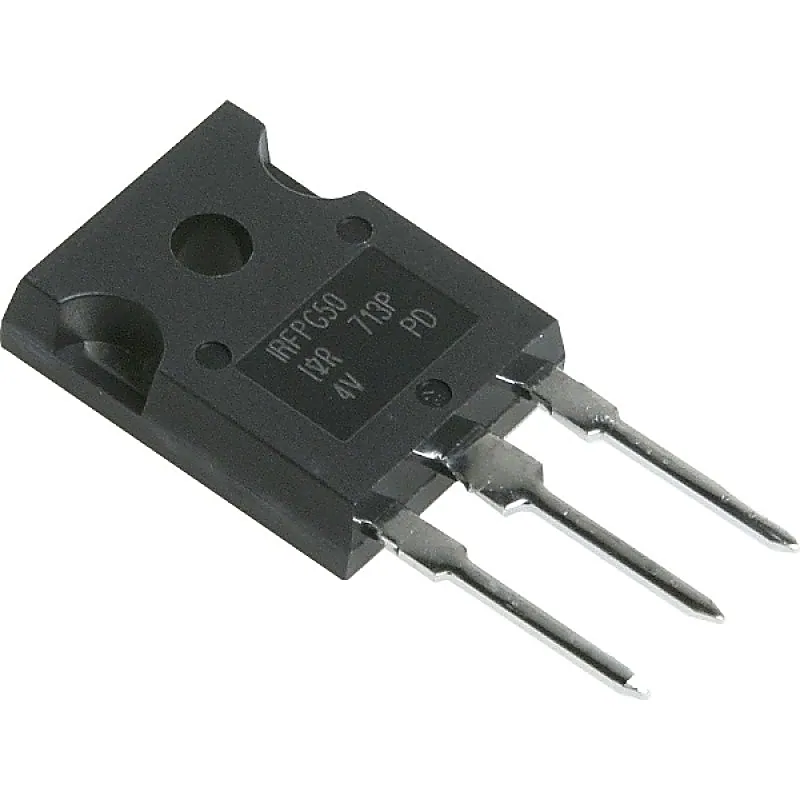

IRFPG50 MOSFET - 1000V 6.1A N-Channel Power MOSFET TO-247 Package

IRFPG50 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218package because of its isolated mounting hole. It also provides greater creepage distance between pins to meet the requirements of most safety specifications. Features:- • Dynamic dV/dt Rating • Repetitive Avalanche Rated • Isolated Central Mounting Hole • Fast Switching • Ease of Paralleling • Simple Drive Requirements • Compliant to RoHS Directive 2002/95/EC Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 1000V Continuous Drain Current (Id) 6.1A Drain-Source Resistance (Rds On) 2Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 190 nC Operating Temperature Range -55 - 150°C Power Dissipation (Pd) 190W Related Documents IRFPG50 MOSFET Datasheet
