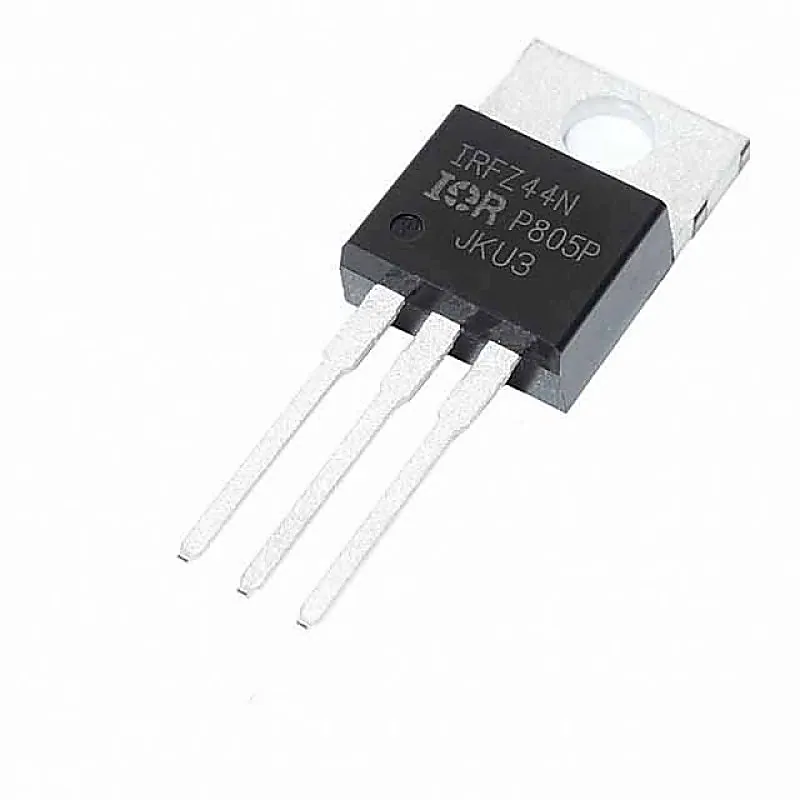

IRFZ44N MOSFET - 55V 49A N-Channel Power MOSFET TO-220 Package

IRFZ44N is specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating . These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications. Features:- • Advanced Process Technology • Ultra Low On-Resistance • 175°C Operating Temperature • Fast Switching • Repetitive Avalanche Allowed up to Tjmax • Lead-Free, RoHS Compliant Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 55V Continuous Drain Current (Id) 49A Drain-Source Resistance (Rds On) 0.0175Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 63 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 94W Related Documents IRFZ44N MOSFET Datasheet
